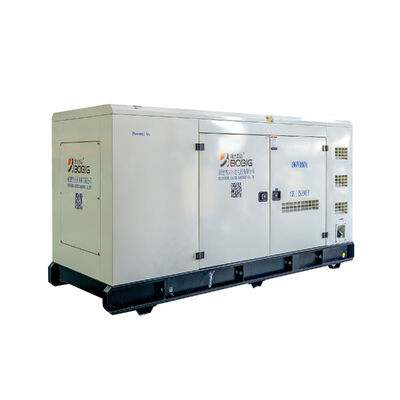

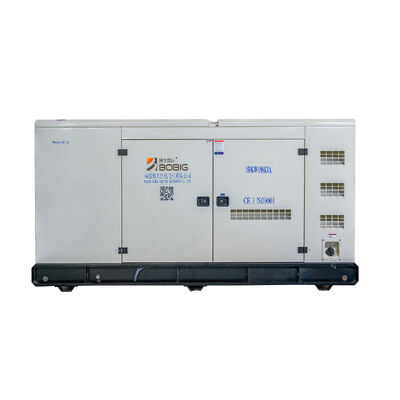

Automatic YANMAR 3TNV84T-GGE 12kw 15kva Diesel Generator with ATS

1
MOQ
USD 300-860
Preis
Automatic YANMAR 3TNV84T-GGE 12kw 15kva Diesel Generator with ATS
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Hervorheben:

Yanmar 3TNV84T diesel generator

,

12kw automatic diesel generator

,

15kva diesel generator with ATS
Grundinformation
Herkunftsort: China
Markenname: YANMAR
Modellnummer: YANMAR 3TNV84T-GGE
Zahlung und Versand AGB
Verpackung Informationen: 190*85*105cm
Lieferzeit: 30 ARBEITSTAGE
Zahlungsbedingungen: L/C, T/T, D/P
Versorgungsmaterial-Fähigkeit: 500 Prozent pro Monat
Produkt-Beschreibung
Automatic YANMAR 3TNV84T-GGE 12kw 15kva Diesel Generator with ATS

Our BOBIG 3TNV84T-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANMAR engine, this 12kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

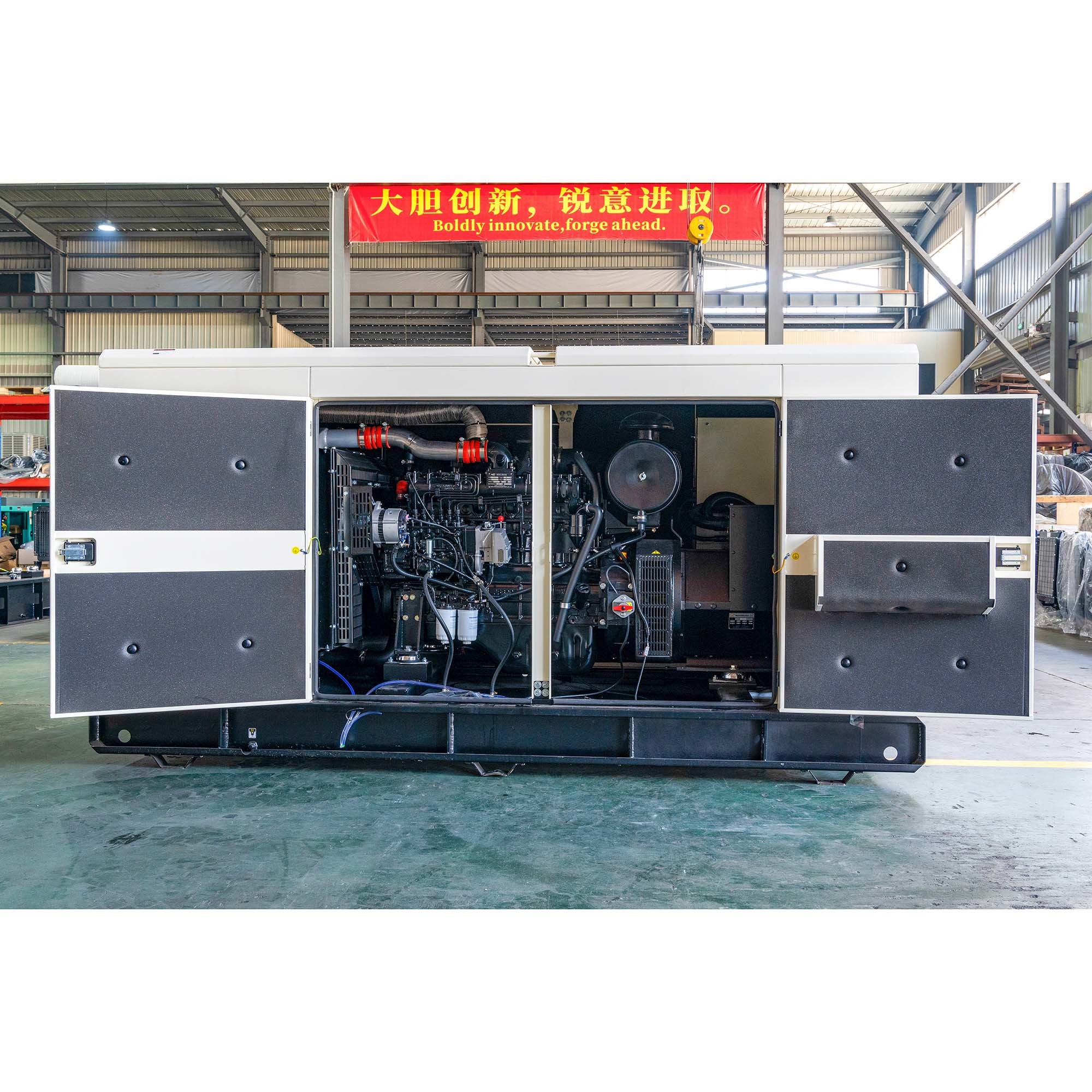

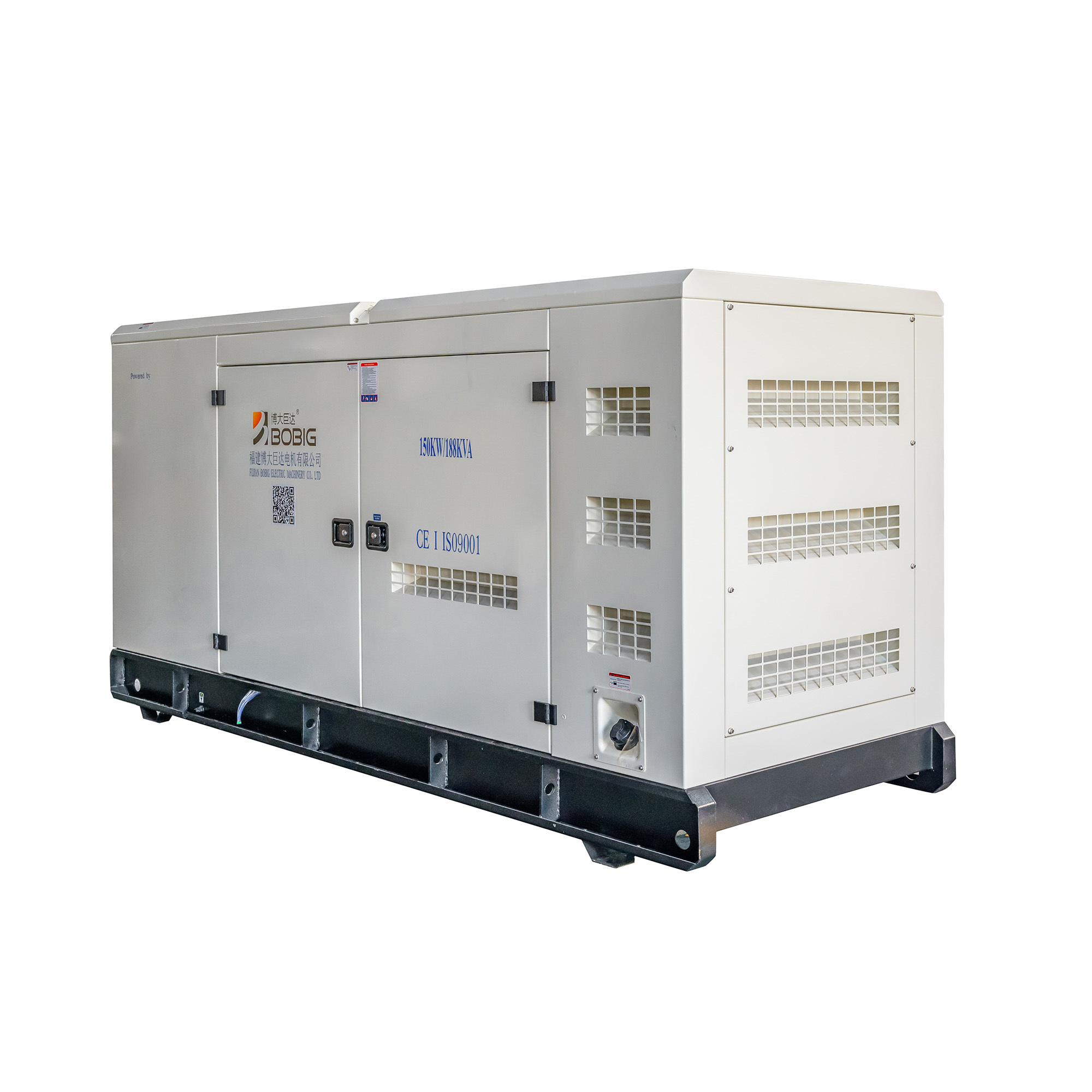

Automatic YANMAR 3TNV84T-GGE 12kw 15kva Diesel Generator with ATS 0 Automatic YANMAR 3TNV84T-GGE 12kw 15kva Diesel Generator with ATS 1
General Specifications
Parameter Prime Power Standby Power
Rated Power (kVA) 15 17
Power Rating (kW) 12 13
Frequency (Hz) 50
Engine Model 3TNV84T-GGE
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power Rating): Available for an unlimited number of annual hours in variable load applications, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP (Emergency Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BYN17 (Open Type) BYN17S (Silent Type)
Length (L) mm 1400 1850
Width (W) mm 610 850
Height (H) mm 1130 1030
Tank Capacity (L) 28 28
Engine Specifications
Engine Model & Manufacturer 3TNV84T-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
Number of Cylinders - Bore × Stroke (mm) 3 - φ84 × 90
Combustion System Direct Injection
Compression Ratio 19
Displacement (liter) 1.496
Rated Output 15.8 kW (21.5 PS)/18.8 kW (25.6 PS)
Continuous Rating 14 kW (19 PS)/16.5 kW (24.4 PS)
Specific Fuel Consumption 245 g/kW-h (180 g/PS-h) at rated output
Engine Dry Weight (kg) approx. 161
Direction of Rotation Counterclockwise (viewed from F.W.)
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164D
Alternator Rated Power 12 kW / 15 kVA
Rated Voltage (V) 230 V / 400 V
Rated Frequency 50 Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Insulation Class H Class
Voltage Regulation, Steady State ≤ ±1%
Control Panel - DSE 6120

Automatic start and auto mains failure control module (Alternator frequency & CAN speed sensing)

Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously for full visibility
  • Configurable to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • 3-phase generator sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm
  • Over current protection

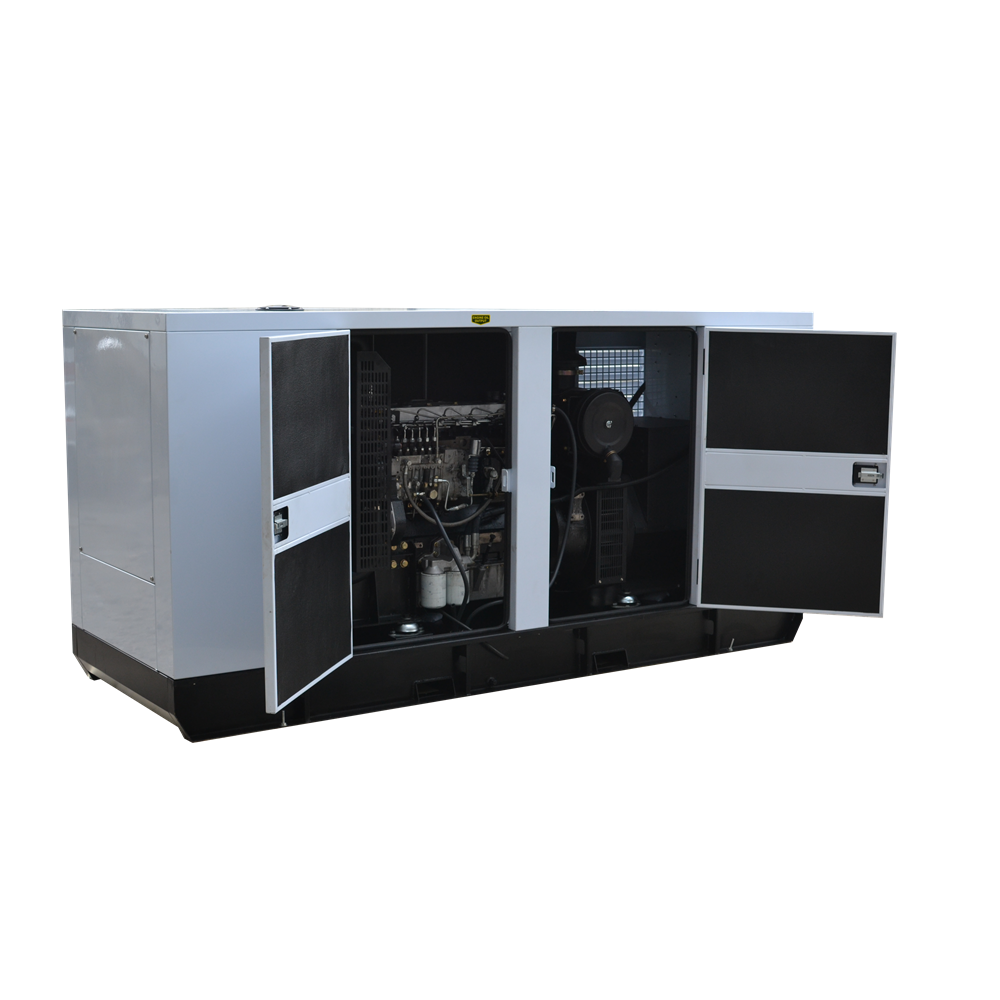

Automatic YANMAR 3TNV84T-GGE 12kw 15kva Diesel Generator with ATS 2
Available Options
Engine
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
Alternator
  • PMG excitation
  • Space heater
  • Winding temperature measuring
Fuel System
  • 12 / 24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
Generating Set
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine

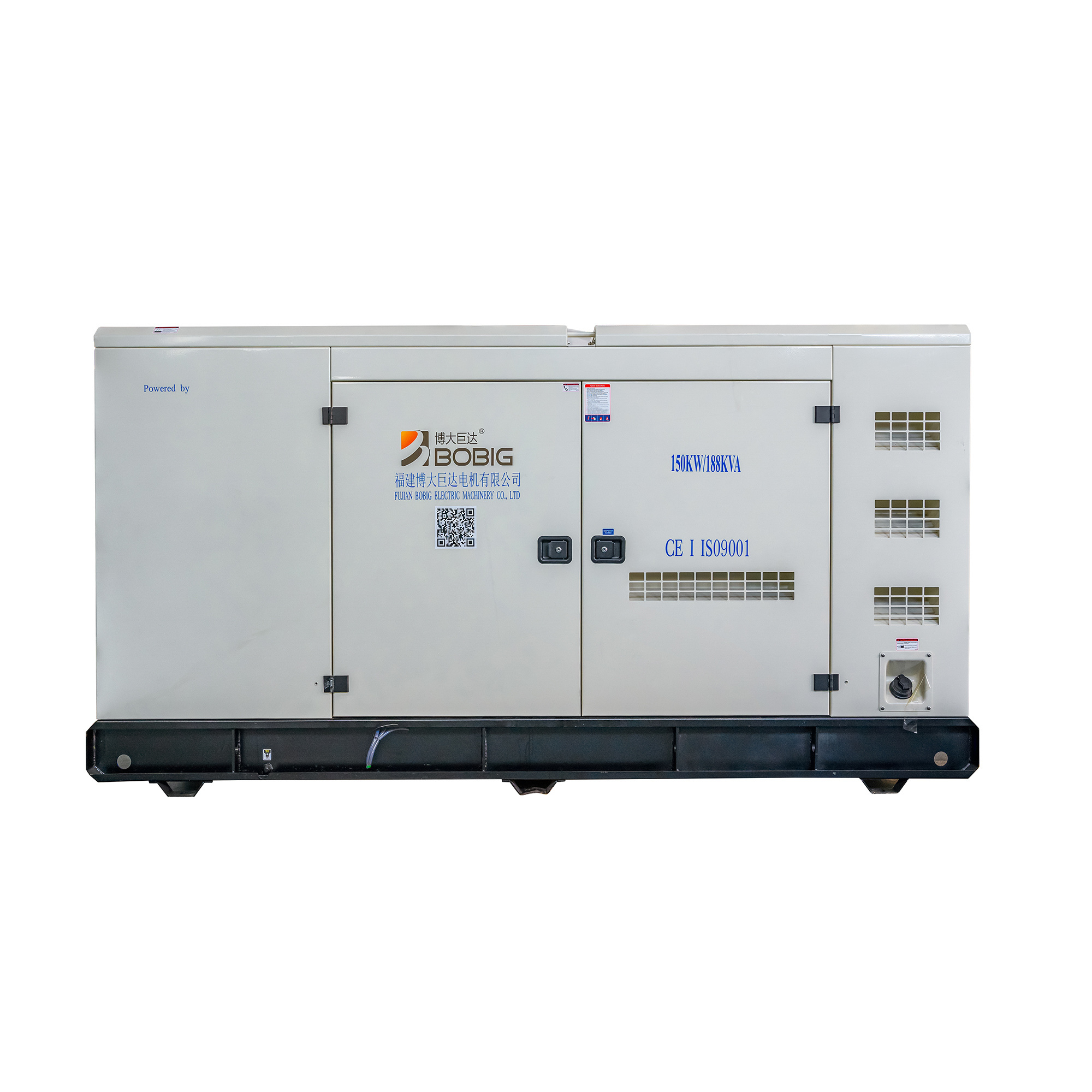

Automatic YANMAR 3TNV84T-GGE 12kw 15kva Diesel Generator with ATS 3
