Name: Professional YANMAR 4TNV88-GGE 15kw 19kwa Diesel Generator Set
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: YANMAR 4TNV88-GGE
Price: 580.00 USD
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Hervorheben:

Yanmar 15kw diesel generator

4TNV88-GGE generator set

19kwa diesel generator with warranty

Grundinformation

Herkunftsort: China

Markenname: YANMAR

Modellnummer: YANMAR 4TNV88-GGE

Zahlung und Versand AGB

Verpackung Informationen: 190*85*105cm

Lieferzeit: 30 ARBEITSTAGE

Zahlungsbedingungen: L/C, T/T, D/P

Versorgungsmaterial-Fähigkeit: 500 Prozent pro Monat

Galerie

Professional YANMAR 4TNV88-GGE 15kw 19kwa Diesel Generator Set

Produkt-Beschreibung

Professional YANMAR 4TNV88-GGE 15kw 19kva Diesel Generator Set

BOBIG diesel generator set
Our YANMAR 4TNV88-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANMAR engine, this 15kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

General Specifications

Specification	Prime Power	Standby Power
Rated Power (kVA)	19	21
Power Rating (kW)	15	17
Frequency (Hz)	50
Engine Model	4TNV88-GGE
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BYN21 (Open Type)	BYN21S (Silent Type)
Length (L) mm	1400	1900
Width (W) mm	610	850
Height (H) mm	1150	1050
Tank Capacity (L)	35	35

Engine Specifications

Engine Model & Manufacturer	4TNV88-GGE (YANMAR)
Engine Type	4 cycle, Inline, Water-cooled Diesel
No. of Cylinders - Bore×Stroke (mm)	4-φ88×90
Combustion System	Direct Injection
Compression Ratio	19.1
Displacement (liter)	2.19
Rated Output kW(PS)/min⁻¹	17.7(24.1)/1500 - 21.6(29.4)/1800
Continuous Rating kW(PS)/min⁻¹	16.4(22.3)/1500 - 19.6(26.6)/1800
Specific Fuel Consumption	245 g/kW-h (180 g/PS-h) at rated output
Ambient Condition	25℃, 750mmHg, 30%
Direction of Rotation	Counter clockwise (viewed from F.W.)
Engine Dry Weight (kg)	approx. 170

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-184ES
Alternator Rated Power	15kw/19kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 Wire
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Voltage Regulation, Steady State	≤±1%

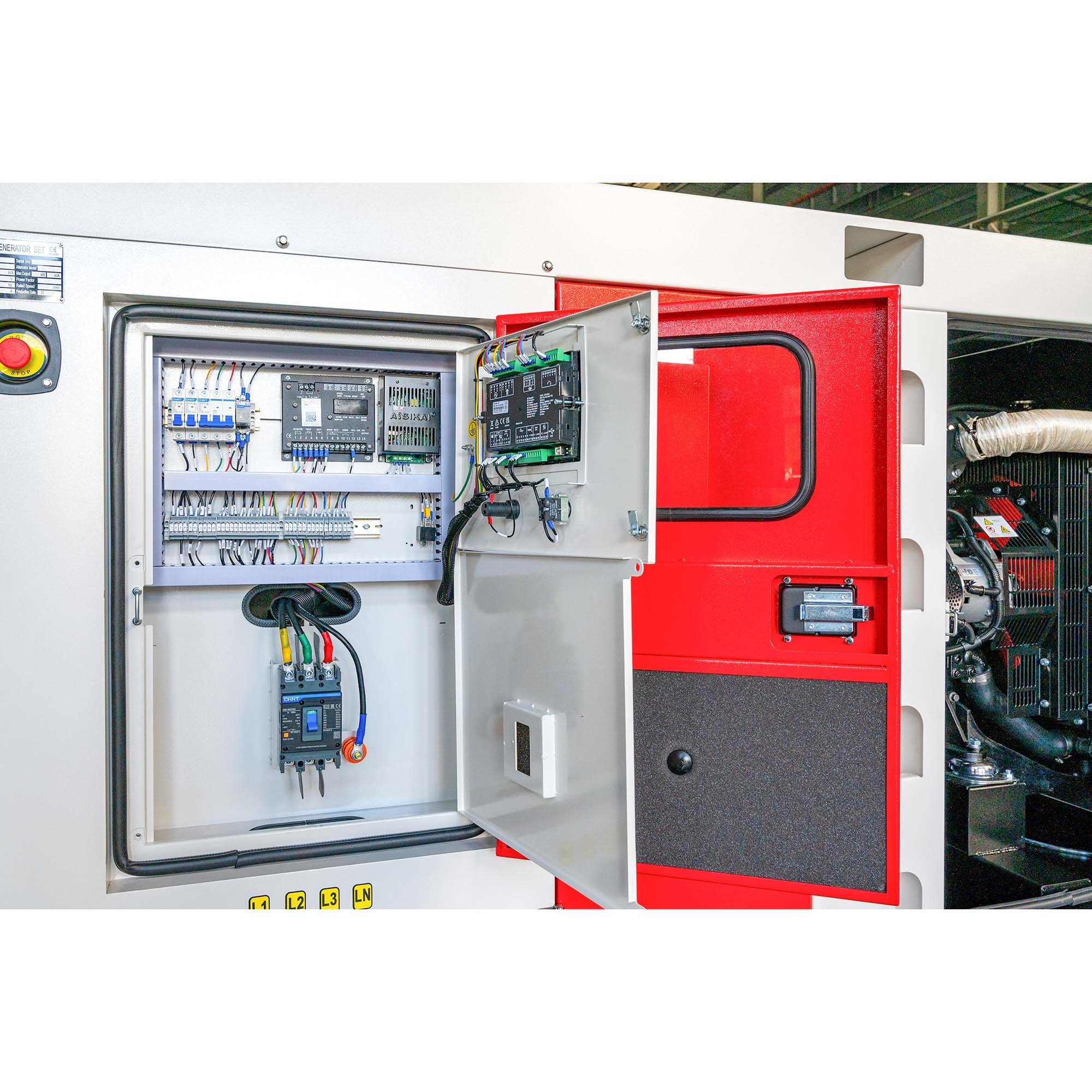

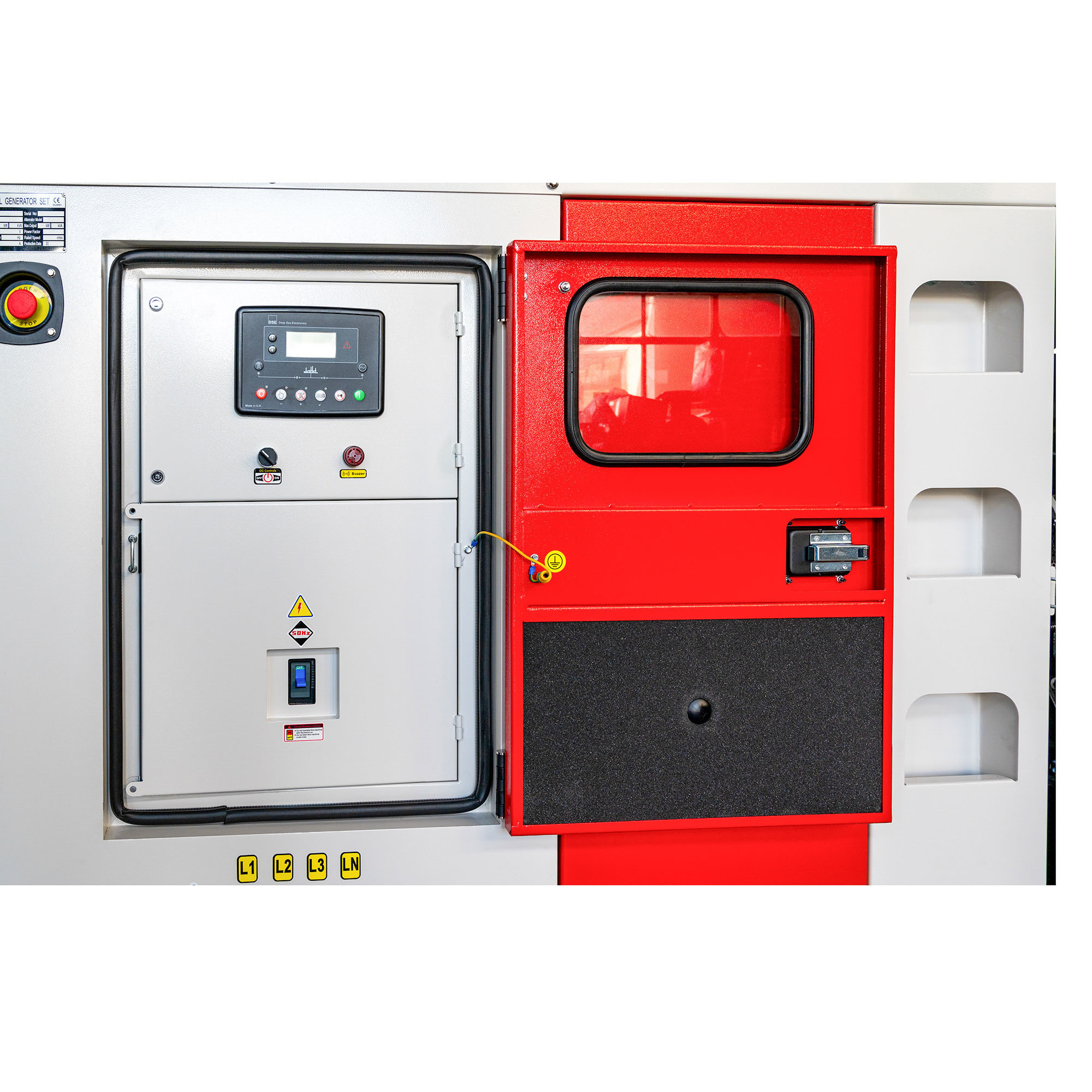

Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)

Key Benefits

Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
Hours counter provides accurate information for monitoring and maintenance periods
User-friendly set-up and button layout for ease of use
Multiple parameters are monitored & displayed simultaneously for full visibility
The module can be configured to suit a wide range of applications for user flexibility
PLC editor allows user configurable functions to meet user specific application requirements

Key Features

4-line back-lit LCD text display
Multiple display languages
Five-key menu navigation
LCD alarm indication
Customisable power-up text and screen images
DSENet® expansion compatibility
Data logging facility
Internal PLC editor
Protections disable feature
Fully configurable via PC using USB communications
Front panel configuration with PIN protection
Power save mode
3-phase generator sensing and protection
3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
Automatic load transfer control (DSE6120 MKIII only)
Generator current and power monitoring (kW, kvar, kVA, pf)
Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
kW overload alarm
Over current protection
Breaker control via fascia buttons
Fuel and start outputs configurable when using CAN
6 configurable DC outputs
4 configurable analogue/digital inputs
Support for 0 V to 10 V & 4 mA to 20 mA sensors
8 configurable digital inputs
CAN, MPU and alternator frequency speed sensing in one variant
Real time clock
Manual and automatic fuel pump control
Engine pre-heat and post-heat functions
Engine run-time scheduler
Engine idle control for starting & stopping
Fuel level alarms
3 configurable maintenance alarms
Compatible with a wide range of CAN engines, including Tier 4 engine support
Uses DSE Configuration Suite PC Software for simplified configuration
Licence-free PC software
IP65 rating (with optional gasket) offers increased resistance to water ingress
Configurable CAN read & transmitted information
1 alternative configuration

Available Options

Engine	Alternator	Fuel System
Water Jacket Preheater	PMG excitation	12 / 24 hour base tank
Oil Preheater	Space heater	Bunded fuel tank
Oil manual pump	Winding temperature measuring	External fuel tank
		Automatic fuel feeding
		Switch between external tank and base tank (three-way valve)

Additional options: Deepsea, ComAp, Smartgen etc. controller, Trailer, Tools with the machine
