Name: YUCHAI Intelligent diesel Generator 720kW 900KVA Open Type Silent diesel Electric Power Make Generator 720kw
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: YCTH281220-G31
Price: 10,600.00 USD
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Überdachung: Maßgeschneidert

Garantie: 12 Monate/1000 Stunden

Typ: Lautlos (super leise) oder offen, leise usw., Reihenmotor/6-Zylinder/4-Takt/4-Ventil/19L, schalldich

Bedienfeld: LCD-Digitalanzeige, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen

Ausgabetyp: Wechselstrom einphasig/dreiphasig

Regler: Deepsea/Smartgen/usw

Anwendung: Indursty Bank etc

Nennspannung: 400/230 V, 110–480 V, 220 V/380 V, 110 V/240 V, 380 V

Generator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford oder Newtec, Engga

Produktname: Dieselgenerator, Generator 900 kVA, angetrieben durch YUCHAI-Dieselgenerator, Standby-Betrieb, Diese

Farbe: Kundenanforderung

Frequenz: 50/60Hz

Nennleistung: 900 kVA

Motor: Ursprüngliches Yuchai

Kühlmethode: Wasserkühlsystem

Hervorheben:

YUCHAI silent diesel generator 720kW

900KVA open type power generator

diesel electric generator with warranty

Grundinformation

Herkunftsort: China

Markenname: YUCHAI

Zertifizierung: CE

Modellnummer: YCTH281220-G31

Zahlung und Versand AGB

Verpackung Informationen: Sperrholz

Lieferzeit: 30 Tage

Versorgungsmaterial-Fähigkeit: 500 Stück pro Monat

Galerie

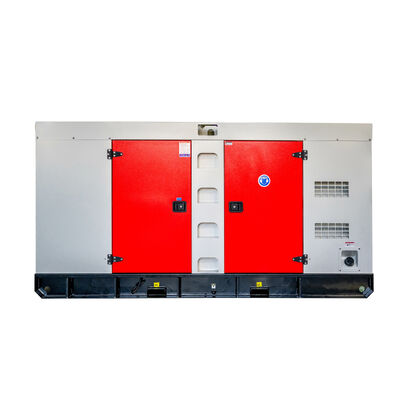

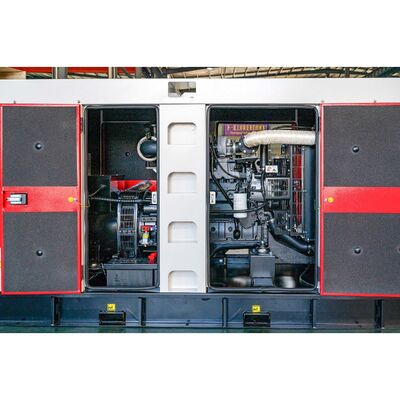

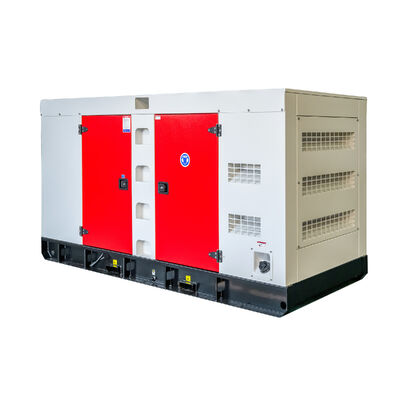

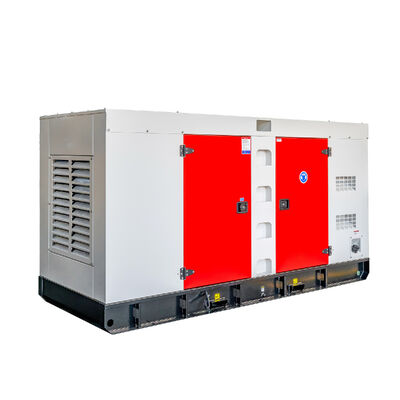

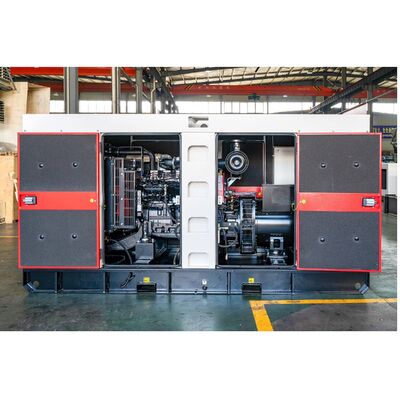

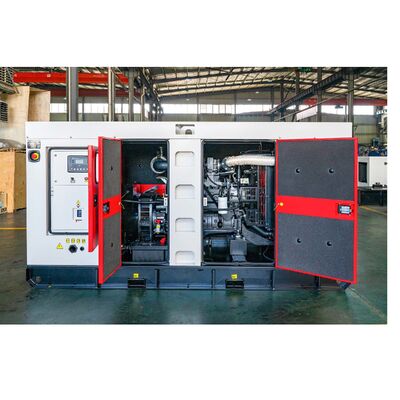

YUCHAI Intelligent diesel Generator 720kW 900KVA Open Type Silent diesel Electric Power Make Generator 720kw

Produkt-Beschreibung

YUCHAI Intelligent Diesel Generator 720kW 900KVA

Our 160kW 200KVA BOBIG PERKINS diesel generator (Model: 1106A-70TAG4) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.

Key Features

Power Performance

Rated Power: 160kW (200KVA) - meets power needs for various industrial, commercial, and residential applications

Frequency: 50Hz standard frequency suitable for most electrical equipment

Prime Power: Stable and efficient output ensuring continuous operation under heavy loads

Engine Excellence

Engine Model: 1106A-70TAG4 PERKINS engine with advanced technology

Engine Speed: 1500 RPM for smooth and consistent power supply

Features: High torque, fuel efficiency, and low emissions

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	200	220
Power Rating (kW)	160	176
Frequency (Hz)	50
Engine Model	1106A-70TAG4
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (customizable)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

Dimensions and Weight

Model	BP220 (Open Type)	BP220S (Silent Type)
Length (mm)	2450	3250
Width (mm)	820	1040
Height (mm)	1550	1500
Tank Capacity (L)	368	368

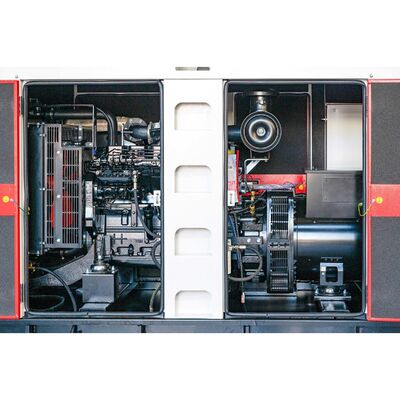

Engine Details

Engine Model & Manufacturer	1106A-70TAG4 (PERKINS)
Number of Cylinders	6
Cylinder Arrangement	Vertical inline
Cycle	Four stroke
Aspiration	Turbocharged and air charge cooled
Bore x Stroke	105 x 135 mm
Cubic Capacity	7.01 L
Compression Ratio	16.0:1
Prime Power/Speed	173.9 kW/1500 rpm
Standby Power/Speed	191.3 kW/1500 rpm
Cooling System	Force Water Cooling Cycle
Total Lubrication System Capacity	12.5 L
Coolant Capacity (engine only)	18.0 L

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274H
Alternator Rated Power	160kw/200kva
Rated Voltage	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class

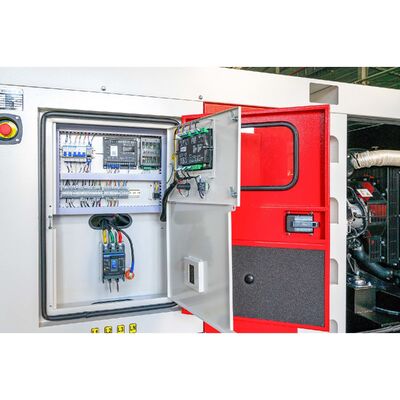

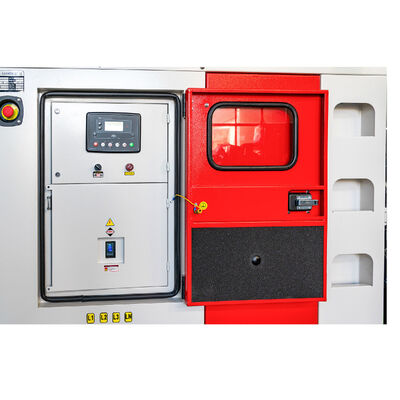

Customization Services: We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with standard DSE 6120 controller (engine, generator, and controller are optional).

Applications

Industrial Use: Backup power source for factories ensuring continuous production during power outages
Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
Residential Areas: Reliable power for communities in areas with unstable power grids

Environmental Standards

Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications.

Warranty & Service

BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.

Product Images
