Startseite /Produkte/Cummins-Dieselgeneratoren/360kW 450KVA diesel power generators with ATS Open Super Silent Generator diesel Set Factory Professional Cum min

360kW 450KVA diesel power generators with ATS Open Super Silent Generator diesel Set Factory Professional Cum min

360kW 450KVA diesel power generators with ATS Open Super Silent Generator diesel Set Factory Professional Cum min
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Überdachung: Maßgeschneidert
Garantie: 12 Monate/1000 Stunden
Typ: Lautlos (super leise) oder offen, leise usw., Reihenmotor/6-Zylinder/4-Takt/4-Ventil/19L, schalldich
Bedienfeld: LCD-Digitalanzeige, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Ausgabetyp: Wechselstrom einphasig/dreiphasig
Regler: Deepsea/Smartgen/usw
Anwendung: Indursty Bank etc
Nennspannung: 400/230 V, 110–480 V, 220 V/380 V, 110 V/240 V, 380 V
Generator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford oder Newtec, Engga
Produktname: Dieselgenerator, Generator 450 kVA, angetrieben durch CUMMIN S-Dieselgenerator, Standby-Betrieb, Die
Farbe: Kundenanforderung
Frequenz: 50/60 Hz
Nennleistung: 360kW
Motor: Original CUMMIN S
Kühlmethode: Wasserkühlsystem
Hervorheben:

360kW diesel power generator with ATS

,

450KVA Cummins diesel generator set

,

super silent diesel generator with warranty
Grundinformation
Herkunftsort: China
Markenname: CUMMIN S
Zertifizierung: CE
Modellnummer: KTA19-G3
Zahlung und Versand AGB
Verpackung Informationen: Luftpolsterfolie
Lieferzeit: 30 Tage
Versorgungsmaterial-Fähigkeit: 500 Stück pro Monat
Produkt-Beschreibung
360kW 450KVA Cummins Diesel Generator Set
Our 360kW 450KVA BOBIG CUMMINS diesel generator (Model: KTA19-G3) provides reliable power for industrial, commercial, and residential applications. Backed by the renowned Cummins brand, it delivers high-quality performance and long-term durability.
Key Features
Power Performance: Rated at 360kW (450KVA) with stable prime power output and 50Hz frequency suitable for most electrical equipment.
Engine Excellence: Powered by KTA19-G3 Cummins engine with 1500 RPM operation, high torque, fuel efficiency, and low emissions.
Compliance: Meets ISO 8528-5:2018, GB/T2820.5-2009, and CE standards for quality, safety, and reliability.
Technical Specifications
Parameter Prime Power Standby Power
Rated Power (kVA) 450 495
Power Rating (kW) 360 396
Frequency (Hz) 50
Engine Model KTA19-G3
Engine Speed (RPM) 1500
Phase 3
Power Factor 0.8
Rated Voltage (V) 400/230
Operating Time ≥ 8h @ 75% load
Dimensions & Weight
Model Type Length (mm) Width (mm) Height (mm) Tank Capacity (L)
BC495 (Open Type) 3350 1300 2050 828
BC495S (Silent Type) 4600 1580 2200 828
Engine Details
Engine Model & Manufacturer KTA19-G3 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged, Aftercooled
Bore x Stroke 159 x 159 mm
Displacement 19 L
Fuel Consumption @ 100% Load 205 g/kWh @1500 rpm
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Model BW-354C
Rated Power 360kW/450kVA
Protection Grade IP23
Insulation Class H class
Voltage Regulation ≤±1%
Environmental Adaptability
Ambient Temperature: Operates effectively from +5°C to +40°C
Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Customization & OEM Services: We support customization with design drawings. All units include standard DSE 6120 controller (engine, generator, and controller are optional).
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free replacement of easy-damageable spare parts during warranty period. Professional 24/7 after-sales support available.
Product Images

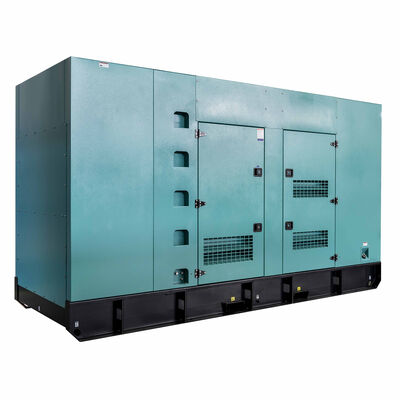

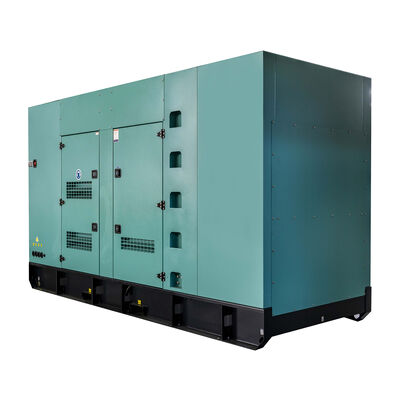

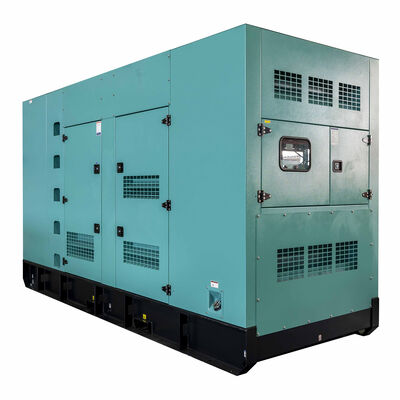

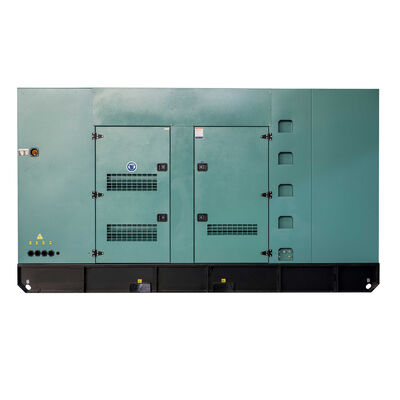

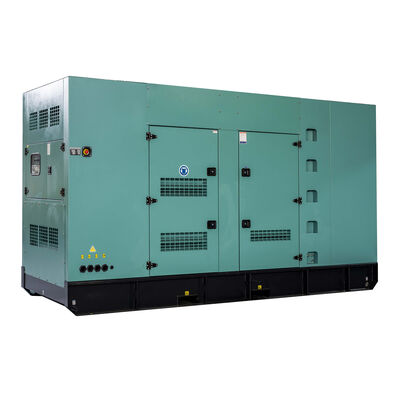

360kW 450KVA Cummins Diesel Generator Set
Certifications
Product Certification 1 Product Certification 2
Packaging: Plywood case | Delivery: 10-15 working days after receiving deposit
