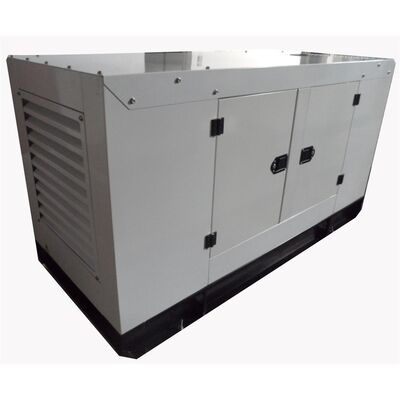

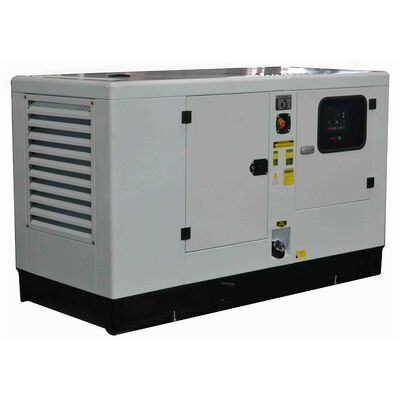

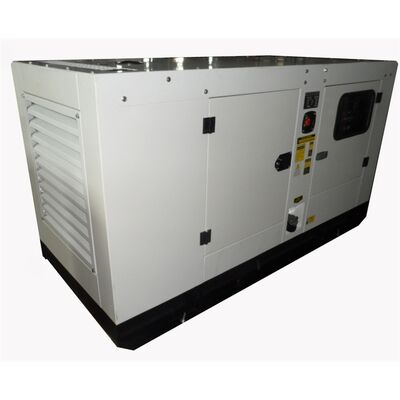

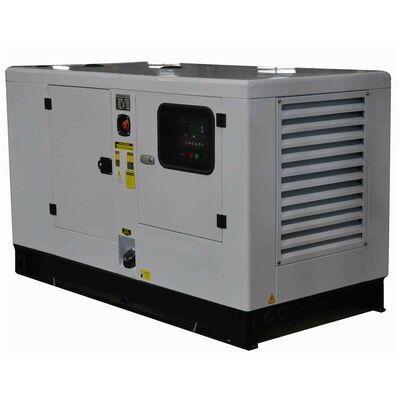

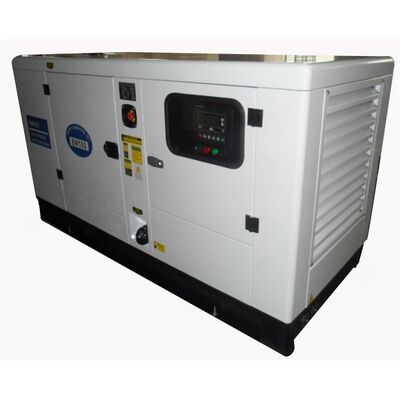

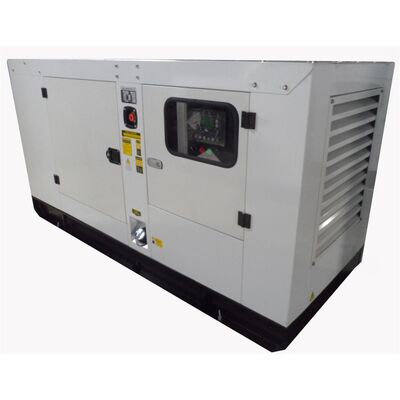

Containerized Silent Diesel Generator Set 1200kW / 1500KVA Prime Power with Original Cummi Engine & Alternator Industrial Backup

Containerized Silent Diesel Generator Set 1200kW / 1500KVA Prime Power with Original Cummi Engine & Alternator Industrial Backup
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Überdachung: Maßgeschneidert
Garantie: 12 Monate/1000 Stunden
Typ: Lautlos (super leise) oder offen, leise usw., Reihenmotor/6-Zylinder/4-Takt/4-Ventil/19L, schalldich
Bedienfeld: LCD-Digitalanzeige, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Ausgabetyp: Wechselstrom einphasig/dreiphasig
Regler: Deepsea/Smartgen/usw
Anwendung: Indursty Bank etc
Nennspannung: 400/230 V, 110–480 V, 220 V/380 V, 110 V/240 V, 380 V
Generator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford oder Newtec, Engga
Produktname: Dieselgenerator, Generator 1500 kVA, angetrieben durch CUMMIN S Dieselgenerator, Standby-Betrieb, Di
Farbe: Kundenanforderung
Frequenz: 50/60 Hz
Nennleistung: 1200 kW
Motor: Original CUMMIN S
Kühlmethode: Wasserkühlsystem
Hervorheben:

Containerized silent diesel generator 1200kW

,

Cummins diesel generator set 1500KVA

,

Industrial backup generator with warranty
Grundinformation
Herkunftsort: China
Markenname: CUMMIN S
Zertifizierung: CE
Modellnummer: KTA50-GS8
Zahlung und Versand AGB
Verpackung Informationen: Luftpolsterfolie
Lieferzeit: 30 Tage
Versorgungsmaterial-Fähigkeit: 500 Stück pro Monat
Produkt-Beschreibung
Containerized Silent Diesel Generator Set 1200kW / 1500KVA
Prime Power with Original Cummins Engine & Alternator Industrial Backup
Product Overview
Our 1200kW 1500KVA BOBIG CUMMINS diesel generator (Model: KTA50-GS8) is engineered to deliver reliable power for diverse industrial, commercial, and residential applications. Backed by the renowned Cummins brand, it offers exceptional performance and long-term durability.
Key Features
Power Performance
Rated Power: 1200kW (1500KVA) for stable, efficient operation under heavy loads
Frequency: 50Hz standard operation suitable for most electrical equipment
Engine Excellence
Engine Model: KTA50-GS8 Cummins engine with advanced technology
Engine Speed: 1500 RPM for smooth, consistent power supply
Environmental Adaptability
Ambient Temperature: +5°C to +40°C operating range
Altitude: Suitable for use up to 1000m elevation
Technical Specifications
Power Ratings
Parameter Prime Power Standby Power
Rated Power (kVA) 1500 1650
Power Rating (kW) 1200 1320
Frequency (Hz) 50
Engine Model KTA50-GS8
Engine Speed (RPM) 1500
Phase 3
Power Factor 0.8
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Operation Time ≥ 8 hours @ 75% load
Dimensions and Weight
Model Type BC1650 (Open) BC1650S (Silent)
Length (mm) 5600 6100
Width (mm) 2150 2250
Height (mm) 2550 3050
Tank Capacity (L) 2760 2760
Engine Specifications
Engine Model & Manufacturer KTA50-GS8 (Cummins)
Number of Cylinders 16
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged and Low Temperature Aftercooled
Bore x Stroke 159 x 159 mm
Displacement 50.3 L
Compression Ratio 15.0:1
Fuel System Cummins PT
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 47 L
Coolant Capacity (engine only) 43.5 L
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-454C
Rated Power 1200kW/1500kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Certifications & Standards
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.
Product Certification 1 Product Certification 2
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services
Customization Support: We support customization and OEM services with design drawings
Standard Equipment: All units come with original power supplies and standard DSE 6120 controller
Optional Components: Engine, generator, and controller are optional based on requirements
Warranty & Support
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.
Packaging & Shipping
Plywood case packaging with 10-15 working days delivery after receiving customer deposit.
Generator Packaging Example 1 Generator Packaging Example 2
