High Quality Silence Diesel Generators 300kw 330kw 375kva 413kva Water Cooling Portable 3 Phase diesel Generator Set

1
MOQ
USD 4500-7200
Preis
High Quality Silence Diesel Generators 300kw 330kw 375kva 413kva Water Cooling Portable 3 Phase diesel Generator Set
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Hervorheben:

300kw silent diesel generator

,

water cooling diesel generator set

,

portable 3 phase diesel generator
Grundinformation
Herkunftsort: China
Markenname: YTO
Modellnummer: YM6S9LF-D
Zahlung und Versand AGB
Verpackung Informationen: 405*151*205cm
Lieferzeit: 30 ARBEITSTAGE
Zahlungsbedingungen: L/C, T/T, D/P
Versorgungsmaterial-Fähigkeit: 500 Stück pro Monat
Produkt-Beschreibung

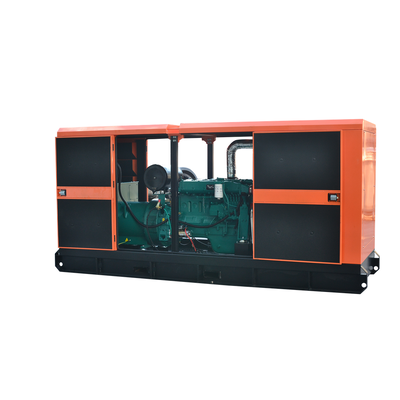

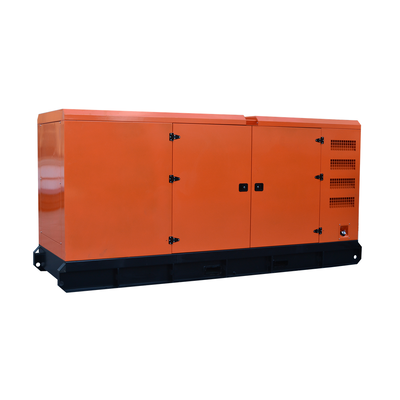

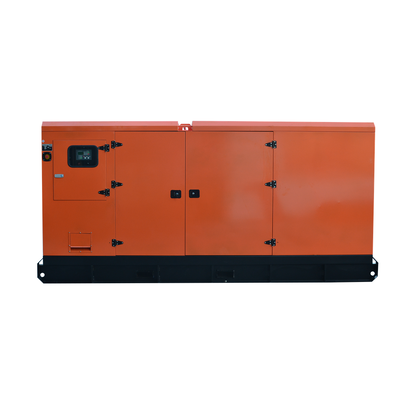

High Quality Silent Diesel Generators
Our YTO YM6S9LF-D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 300kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.
High Quality Silence Diesel Generators 300kw 330kw 375kva 413kva Water Cooling Portable 3 Phase diesel Generator Set 0 High Quality Silence Diesel Generators 300kw 330kw 375kva 413kva Water Cooling Portable 3 Phase diesel Generator Set 1
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 375 413
Power Rating (kW) 300 330
Frequency (Hz) 50
Engine Model YM6S9LF-D
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Power Rating Definitions
PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12 hours of operation.
ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.
Dimensions and Weight
Model BYT413 (Open Type) BYT413S (Silent Type)
Length (L) mm 3100 4050
Width (W) mm 1050 1510
Height (H) mm 2150 2050
Tank Capacity (L) 690 690
Engine Specifications
Engine Model & Manufacturer YM6S9LF-D (YTO)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Air Aspiration Method Turbocharged with air to air cooler
Cooling Medium Liquid
Bore 126 mm
Stroke 155 mm
Compression Ratio 17.0:1
Cubic Capacity 11.596 L
Dry Engine Weight 1100 kg
Dimensions (L×W×H) 1229×1813×965 mm
Rotation Direction Anti-clockwise viewed on flywheel
Governed Engine Speed 1500 RPM
Firing Order 1-5-3-6-2-4 (1 cylinder furthest from flywheel)
Steady State Speed Stability ≤ 3%
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314F
Alternator Rated Power 300kW/375kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Specific Fuel Consumption ≤ 205g/kW·h
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only)
  • Hours counter for accurate monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously
  • Configurable to suit wide range of applications
  • PLC editor allows user configurable functions
High Quality Silence Diesel Generators 300kw 330kw 375kva 413kva Water Cooling Portable 3 Phase diesel Generator Set 2
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with wide range of CAN engines including Tier 4
  • Uses DSE Configuration Suite PC Software
  • Licence-free PC software
  • IP65 rating (with optional gasket)
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
High Quality Silence Diesel Generators 300kw 330kw 375kva 413kva Water Cooling Portable 3 Phase diesel Generator Set 3 High Quality Silence Diesel Generators 300kw 330kw 375kva 413kva Water Cooling Portable 3 Phase diesel Generator Set 4 High Quality Silence Diesel Generators 300kw 330kw 375kva 413kva Water Cooling Portable 3 Phase diesel Generator Set 5
