Name: 1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: 16M33G2000/5
Price: 1,600.00 USD
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Hervorheben:

1500KW silent diesel generator

3 phase power plant generator

data center diesel generator 50Hz

Grundinformation

Herkunftsort: China

Markenname: Baudouin

Modellnummer: 16M33G2000/5

Zahlung und Versand AGB

Verpackung Informationen: 520*225*255cm

Lieferzeit: 30 ARBEITSTAGE

Zahlungsbedingungen: L/C, T/T, D/P

Versorgungsmaterial-Fähigkeit: 500 Stück pro Monat

Galerie

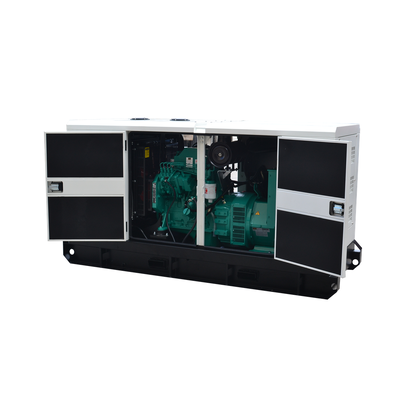

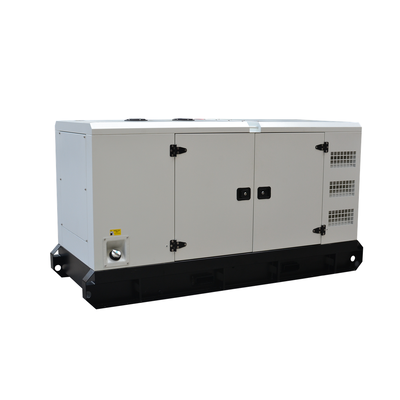

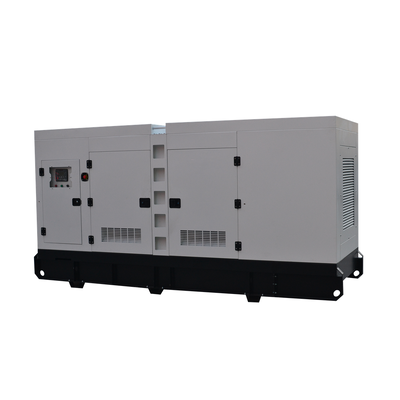

1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz

Produkt-Beschreibung

1500KW 1875kVA 3 Phase Diesel Generator

Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz

Our Baudouin 16M33G2000/5 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned Baudouin engine, this 1500kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

Power Specifications

Specification	Prime Power	Standby Power
Rated Power (kVA)	1875	2063
Power Rating (kW)	1500	1650
Frequency (Hz)	50
Engine Model	16M33G2000/5
Engine Speed (RPM)	1500
Phase	3
Power Factor (PF)	0.8
Control System	Digital
Rated Voltage (V)	400/230 (Customizable)
Fuel Tank Capacity Operating Time	≥ 8 hours @ 75% load

PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation.

ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.

Dimensions and Weight

Model	BBDA2063 (Open Type)	BBDA2063S (Silent Type)
Length (L) mm	5200	**
Width (W) mm	2250	**
Height (H) mm	2550	**
Tank Capacity (L)	3450	**

Engine Specifications

Engine Model & Manufacturer	16M33G2000/5 (BAUDOUIN)
Number of Cylinders / Valves	16 / 64
Cylinders Arrangement	Vee Configuration
Bore x Stroke (mm)	150 x 185
Displacement (L)	52.3
Thermodynamic Cycle	Diesel 4 Stroke
Mean Piston Speed (m/s)	9.25
BMEP @ ESP (Bar)	27.53
Cooling System	Liquid (water + 50% antifreeze)
Injection System	Direct
Fuel System	High Pressure Common Rail
Aspiration	Turbocharged and Aftercooled
Compression Ratio	15:1
Flywheel Housing	SAE 0
Flywheel	18"
Number of Teeth on Flywheel Ring Gear	194
Inertia of Flywheel (kg•m²)	7.2
Inertia of Crankshaft (kg•m²)	10.1
Emission Standard	N/A
Overall Dimensions with Radiator (L x W x H mm)	3967 x 2237 x 2485
Engine Dry Weight without Radiator (kg)	5200
Engine Dry Weight with Radiator (kg)	6450
Engine Wet Weight with Radiator (kg)	7151

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-454C
Alternator Rated Power	1500kw/1875kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 Wire
Number of Bearings	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H Class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Control Panel - DSE 6120

Auto start and auto mains failure control module with alternator frequency & CAN speed sensing

Key Benefits

Automatically transfers between mains (utility) and generator for convenience
Hours counter provides accurate information for monitoring and maintenance periods
User-friendly set-up and button layout for ease of use
Multiple parameters monitored & displayed simultaneously for full visibility
Configurable to suit a wide range of applications for user flexibility
PLC editor allows user configurable functions to meet specific application requirements

Key Features

4-line back-lit LCD text display with multiple display languages
Five-key menu navigation with LCD alarm indication
Customizable power-up text and screen images
DSENet® expansion compatibility with data logging facility
Internal PLC editor with protections disable feature
Fully configurable via PC using USB communications
Front panel configuration with PIN protection and power save mode
3-phase generator sensing and protection
3-phase mains (utility) sensing and protection
Automatic load transfer control
Generator current and power monitoring (kW, kvar, kVA, pf)
Mains (utility) current and power monitoring (kW, kvar, kVA, pf)
kW overload alarm and over current protection
Breaker control via fascia buttons
Fuel and start outputs configurable when using CAN
6 configurable DC outputs and 4 configurable analogue/digital inputs
Support for 0V to 10V & 4mA to 20mA sensors
8 configurable digital inputs
CAN, MPU and alternator frequency speed sensing in one variant
Real time clock with manual and automatic fuel pump control
Engine pre-heat and post-heat functions
Engine run-time scheduler with idle control for starting & stopping
Fuel level alarms and 3 configurable maintenance alarms
Compatible with wide range of CAN engines, including Tier 4 engine support
Uses DSE Configuration Suite PC Software for simplified configuration
Licence-free PC software
IP65 rating (with optional gasket) for increased water resistance
Configurable CAN read & transmitted information with 1 alternative configuration

Available Options

Engine	Alternator	Fuel System	Generating Set
Water Jacket Preheater	PMG excitation	12/24 hour base tank	Deepsea, ComAp, Smartgen controllers
Oil Preheater	Space heater	Bunded fuel tank	Trailer
Oil manual pump	Winding temperature measuring	External fuel tank	Tools with the machine
		Automatic fuel feeding
		Switch between external tank and base tank (three-way valve)
