The Factory Directly Supplies With Various Customized Baudouin 1000/1100KW 1250/1375KVA Low Noise Diesel Generator Set

1
MOQ
1900-2900USD
Preis
The Factory Directly Supplies With Various Customized Baudouin 1000/1100KW 1250/1375KVA Low Noise Diesel Generator Set
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Hervorheben:

Baudouin 1000KW diesel generator

,

low noise Baudouin generator set

,

customized Baudouin 1100KW generator
Grundinformation
Herkunftsort: China
Markenname: Baudouin
Zertifizierung: ISO 9001
Modellnummer: 12M33G1500/5
Zahlung und Versand AGB
Verpackung Informationen: 610*225*305cm
Lieferzeit: 30 ARBEITSTAGE
Versorgungsmaterial-Fähigkeit: 500 Stück pro Monat
Produkt-Beschreibung
Factory Direct Customized Baudouin 1000/1100KW 1250/1375KVA Low Noise Diesel Generator Set
Our Baudouin 12M33G1500/5 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned Baudouin engine, this 1100kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.
Baudouin 1100KW Diesel Generator Set - Front View Baudouin 1100KW Diesel Generator Set - Side View
Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 1375 1513
Power Rating (kW) 1100 1210
Frequency (Hz) 50
Engine Model 12M33G1500/5
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97; includes 10% overload capability for 1 hour within 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BBDA1513 (Open Type) BBDA1513S (Silent Type)
Length (L) mm 4800 **
Width (W) mm 1550 **
Height (H) mm 2550 **
Tank Capacity (L) 2530 **
Engine Specifications
Engine Model & Manufacturer 12M33G1500/5 (BAUDOUIN)
Number of Cylinders / Valves 12 / 48
Cylinders Arrangement At Vee
Bore x Stroke (mm) 150 x 185
Displacement (L) 39.2
Thermodynamic Cycle Diesel 4 stroke
Mean Piston Speed (m/s) 9.25
BMEP @ ESP (Bar) 26.94
Cooling System Liquid (water + 50% antifreeze)
Injection System Direct
Fuel System Mechanical Pump
Aspiration Turbocharged and Aftercooled
Compression Ratio 15:1
Flywheel Housing SAE 0
Flywheel 18"
Number of Teeth on Flywheel Ring Gear 194
Inertia of Flywheel (kg•m²) 7.18
Inertia of Crankshaft (kg•m²) 4.52
Emission Standard N/A
Overall Dimensions with Radiator (L x W x H) mm 3525×2241.5×2243
Engine Dry Weight without Radiator (kg) 3590
Engine Dry Weight with Radiator (kg) 4575
Engine Wet Weight with Radiator (kg) 5024
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-404G
Alternator Rated Power 1100kw/1375kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only)
  • Hours counter for accurate monitoring and maintenance periods
  • User-friendly set-up and button layout
  • Multiple parameters monitored & displayed simultaneously
  • Configurable for wide range of applications
  • PLC editor for user configurable functions
DSE 6120 Control Panel Display
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility with data logging facility
  • Internal PLC editor with protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains current and power monitoring (DSE6120 MKIII only)
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs and 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing
  • Real time clock with engine pre-heat and post-heat functions
  • Engine run-time scheduler with idle control
  • Fuel level alarms and 3 configurable maintenance alarms
  • Compatible with wide range of CAN engines including Tier 4
  • Uses DSE Configuration Suite PC Software
  • IP65 rating (with optional gasket)
  • Configurable CAN read & transmitted information
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank

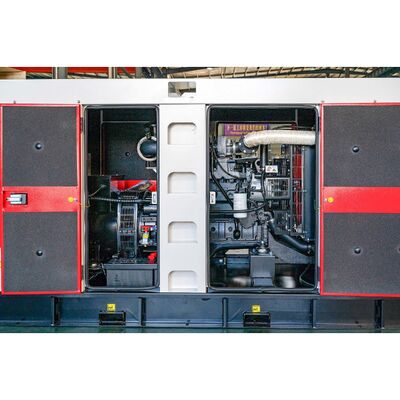

Baudouin Generator Set Internal Components Baudouin Generator Set Control Panel Close-up
