30kW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 38KVA

30kW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 38KVA
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Überdachung: Maßgeschneidert
Garantie: 12 Stunden Months/1000
Typ: Still (superstilles) oder offen, still, usw., In-line/6-Cylinder/4-Stroke/4-Valve/19L, schalldichte
Bedienfeld: Digitalanzeige LCD, Tiefsee, ComAp, Tiefsee-/ComAp/Harsen/Smartgen 6110, Smartgen
Ausgabetyp: Wechselstrom einzeln/dreiphasig
Regler: Tiefsee-/Smartgen/usw.
Anwendung: Indursty-Bank usw.
Nennspannung: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
GENERATOR: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford oder Newtec, Engga
Produktname: Dieselgenerator, Generator 38 kVA, angetrieben durch KUBOTA-Dieselgenerator, Standby-Betrieb, Diesel
Farbe: Kundenanforderung
Frequenz: 50/60Hz
Nennleistung: 38kVA
Motor: Original KUBOTA
Kühlmethode: Wasserkühlsystem
Hervorheben:

30kW silent diesel generator

,

water cooled diesel generator

,

auto start diesel generator
Grundinformation
Herkunftsort: China
Markenname: KUBOTA
Zertifizierung: CE
Modellnummer: V3300T
Zahlung und Versand AGB
Verpackung Informationen: Sperrholz
Lieferzeit: 30 Tage
Versorgungsmaterial-Fähigkeit: 500 Prozent pro Monat
Produkt-Beschreibung

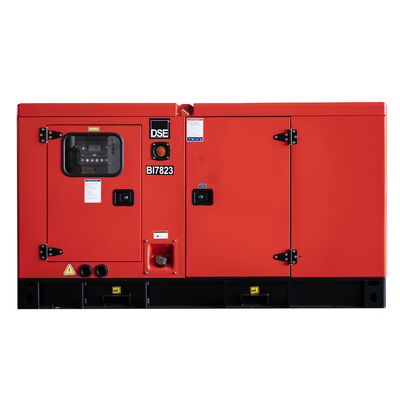

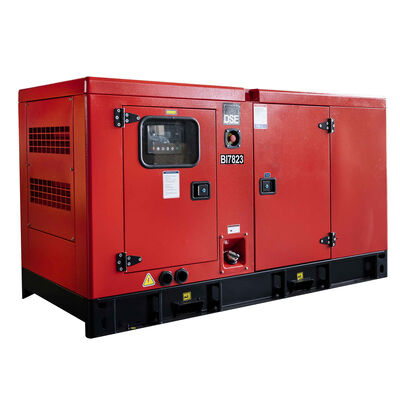

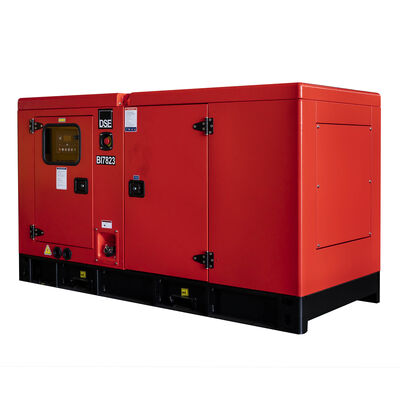

30kW Silent Diesel Generator with Digital Panel Water Cooled System
Our 30kW 38KVA BOBIG KUBOTA diesel generator (Model: V3300T) is designed to provide reliable power for a wide range of applications. Backed by the KUBOTA brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
With a rated power of 30kW (38KVA), this generator meets the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads. Operating at a standard frequency of 50Hz, it is suitable for most electrical equipment in the market.
Engine Excellence
Powered by the V3300T KUBOTA engine, this generator combines advanced technology with high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions. Running at 1500 RPM, it provides smooth and consistent power while minimizing wear and tear.
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 38 41
Power Rating (kW) 30 33
Frequency (Hz) 50
Engine Model V3300T
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Details
Engine Model & Manufacturer V3300T (KUBOTA)
Engine Model V3300-T-E2BG-CHN-1
Type Vertical, water-cooled, 4-cycle diesel engine
Number of Cylinders 4
Cylinder Bore (mm) 98
Stroke (mm) 110
Combustion Type Spherical Type (E-TVCS)
Total Displacement (L) 3.318
Brake Horse Power (Continuous) kW/rpm 43.1/1800
Dry Weight (kg) Approx. 250
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184H
Rated Power 30kW/38kVA
Protection Grade IP23
Insulation Class H class
Dimensions and Weight
Model BK41 (Open) BK41S (Silent)
Length (mm) 1800 2200
Width (mm) 710 850
Height (mm) 1170 1070
Tank Capacity (L) 69 69
Applications
  • Industrial Use: Backup power source for factories, ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities with unstable power grids
Quality and Standards
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
Environmental Adaptability
Operates effectively in ambient temperatures from +5°C to +40°C and at altitudes up to 1000m. Custom solutions available for different environmental conditions.
Warranty and Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). During the warranty period, we provide free replacement of easily damaged spare parts caused by production or material quality issues.
Why Choose BOBIG
  • Brand Reputation: KUBOTA is a trusted brand with a long history of quality products
  • Quality Assurance: Manufactured in strict accordance with international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on specific customer requirements
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as customer request.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
