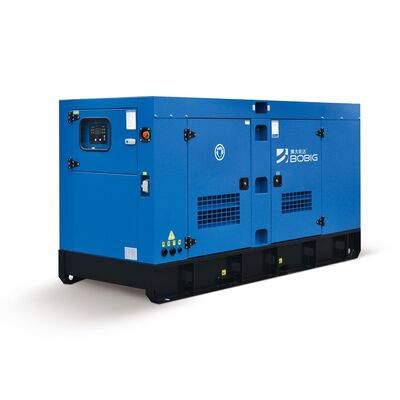

Industry 20kVA 25kVA engine Silent Soundproof Electric Power Diesel Generator Set

1
MOQ
Industry 20kVA 25kVA engine Silent Soundproof Electric Power Diesel Generator Set
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Nennleistung: 20 kW
Nennleistung: 25kVA
Steuerungssystem: Digital
Tankinhalt: 46L
Phase: 3
Frequenz: 50/60Hz
Typ: Lautlos/Offen
Hervorheben:

20kVA silent diesel generator

,

25kVA soundproof power generator

,

industrial electric diesel generator set
Grundinformation
Herkunftsort: China
Markenname: KUBOTA
Zertifizierung: CE
Modellnummer: V3300
Zahlung und Versand AGB
Verpackung Informationen: 180cm*71cm*117cm
Lieferzeit: 5-8 Werktage
Zahlungsbedingungen: L/C, T/T
Produkt-Beschreibung
Industry 20kVA 25kVA Engine Silent Soundproof Electric Power Diesel Generator Set
Product Overview
High-quality KUBOTA diesel generators available in various configurations. Features include silent and open type designs with competitive pricing and natural gas power options.
Model V3300 is a dependable power generator for industrial and commercial environments. We offer various power configurations that can be customized according to your needs.
Industry 20kVA 25kVA engine Silent Soundproof Electric Power Diesel Generator Set 0 Industry 20kVA 25kVA engine Silent Soundproof Electric Power Diesel Generator Set 1
Please feel free to contact us!
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 25 28
Power Rating (kW) 20 22
Frequency (Hz) 50
Engine Model V3300
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP - Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP - The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating
Industry 20kVA 25kVA engine Silent Soundproof Electric Power Diesel Generator Set 2
Dimensions and Weight
Model BK28 (Open Type) BK28S (Silent Type)
Length (L) mm 1800 2200
Width (W) mm 710 850
Height (H) mm 1170 1070
Tank Capacity (L) 46 46
Engine Specifications
Engine Model & Manufacturer V3300 (KUBOTA)
Engine Model V3300-E2BG-CHN-1
Engine Code Number 1G516-27000
Type Vertical, water-cooled, 4-cycle diesel engine
Number of Cylinder 4
Cylinder Bore (mm) 98
Stroke (mm) 110
Combustion Type Spherical Type (E-TVCS)
Total Displacement (L) 3.318
Brake Horse Power (Continuous) kW/rpm (PS/rpm) 35.3/1800 (48.0/1800)
Brake Horse Power (Stand-by) kW/rpm (PS/rpm) 32.1/1800 (43.6/1800)
Firing Order 1-3-4-2
Direction of Rotation Counter-Clockwise (Viewed from Flywheel Side)
Injection Pump Bosch Type
Fuel Injection Pressure (MPa) kgf/cm² 13.73 (140)
Fuel Injection Timing (deg.) 10 Before T.D.C (p)
Compression Ratio 22.6
Governor Type All Speed Mechanical Governor
Fuel Oil Diesel Fuel No.2-D (ASTMD975)
Starting System Starter (with glow plug)
Starter Output (V-kW) 12 - 2.5
Alternator Output (V - A) 12 - 45
Cooling System Pressurized Radiator, Forced Circulation with water pump
Lubricating System Forced Lubricating by Trochoid Pump
Lubrication Oil Class CF lubricating oil as per API classification is recommended
Lub. Oil Capacity (L) 13.2
Dimensions (L x W x H) mm 769.2×536×751
Emission Regulation China Off Road
Intake Resistance (kPa) mmAq ≦ 1.96 (200)
Back Pressure (kPa) mmHg ≦ 7.07 (53)
Ho (Heat Rejection to coolant) kcal/h 28,664
Combustion Air Requirements (25℃ and 750mmHg) m³/min 2.6
Exhaust Gas Volume (25℃ and 750mmHg) m³/min 7.16
Dry Weight (kg) Approx. 241
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184FS
Alternator Rated Power 20kw/25kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
