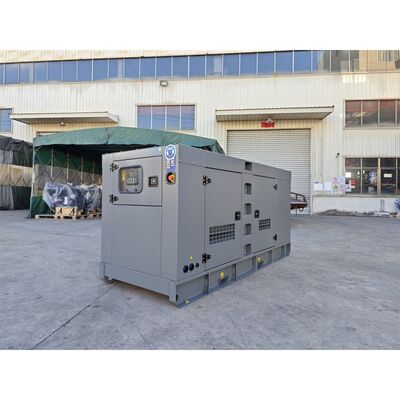

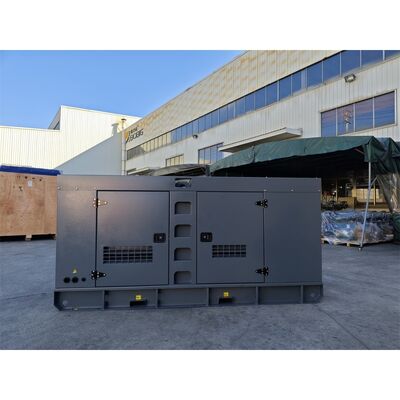

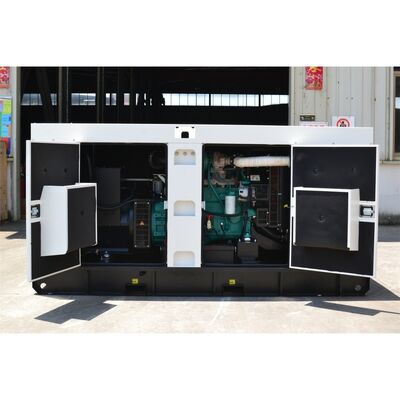

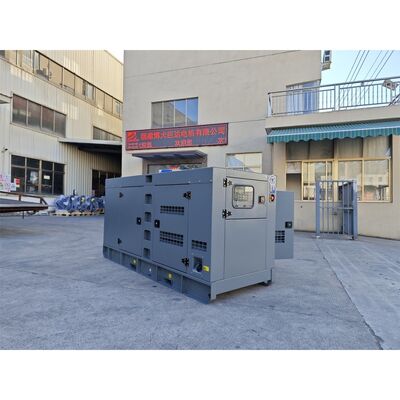

Customizable Doosan Low Noise Silent Diesel Generator Set 360kW 450KVA Construction, Household Use, and Industrial Use

Customizable Doosan Low Noise Silent Diesel Generator Set 360kW 450KVA Construction, Household Use, and Industrial Use
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Überdachung: Maßgeschneidert
Garantie: 12 Monate/1000 Stunden
Typ: Lautlos (super leise) oder offen, leise usw., Reihenmotor/6-Zylinder/4-Takt/4-Ventil/19L, schalldich
Bedienfeld: LCD-Digitalanzeige, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Ausgabetyp: Wechselstrom einphasig/dreiphasig
Regler: Deepsea/Smartgen/usw
Anwendung: Indursty Bank etc
Nennspannung: 400/230 V, 110–480 V, 220 V/380 V, 110 V/240 V, 380 V
Generator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford oder Newtec, Engga
Produktname: Dieselgenerator, Generator 450 kVA, angetrieben durch ISUZU-Dieselgenerator, Standby-Betrieb, Diesel
Farbe: Kundenanforderung
Frequenz: 50/60Hz
Nennleistung: 360kW
Motor: Original Doosan
Kühlmethode: Wasserkühlsystem
Hervorheben:

Customizable Doosan silent diesel generator

,

Low noise 360kW diesel generator set

,

450KVA industrial diesel generator
Grundinformation
Herkunftsort: China
Markenname: Doosan
Zertifizierung: CE
Modellnummer: DP126CE
Zahlung und Versand AGB
Verpackung Informationen: Luftpolsterfolie
Lieferzeit: 30 Tage
Versorgungsmaterial-Fähigkeit: 3000 Sätze/Monat
Produkt-Beschreibung
Customizable Doosan Low Noise Silent Diesel Generator Set 360kW 450KVA
Designed for construction, household use, and industrial applications, this reliable power solution delivers exceptional performance and durability.
Product Overview
The 360kW 450KVA BOBIG Doosan diesel generator (Model: DP126CE) provides reliable power for diverse applications, backed by the renowned Doosan brand for quality performance and long-term durability.
Key Features
Power Performance
Rated at 360kW (450KVA), this generator meets power needs for industrial, commercial, and residential applications with stable, efficient prime power output.
Operating at 50Hz standard frequency, compatible with most electrical equipment.
Engine Excellence
Powered by the DP126CE Doosan engine featuring advanced technology, high torque, fuel efficiency, and low emissions.
Running at 1500 RPM for smooth, consistent power supply with minimized component wear.
Technical Specifications
General Information
ParameterPrime PowerStandby Power
Rated Power (kVA)450495
Power Rating (kW)360396
Frequency (Hz)50
Engine ModelDP126CE
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Operating Time≥ 8h @ 75% load
Dimensions and Weight
ModelBDO495 (Open)BDO495S (Silent)
Length (mm)31004050
Width (mm)10501510
Height (mm)21502050
Tank Capacity (L)828828
Engine Details
Engine Model & ManufacturerDP126CE (DOOSAN)
Engine Type4-stroke, in-line 4 cylinder, water cooled, common rail direct injection
Bore x Stroke123 x 155 mm
Displacement11.051 liters
Compression Ratio16.5:1
RotationCounter clockwise viewed from flywheel
Firing Order1-5-3-6-2-4
Dry Weight1058 kg (engine only)
Dimension (LxWxH)1,411 x 1,133 x 1,323 mm
Alternator Specifications
Alternator BrandBOBIG
ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
ModelBW-354C
Rated Power360kW/450kVA
Rated Voltage230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Environmental Adaptability
Operates effectively in ambient temperatures from +5°C to +40°C and at altitudes up to 1000m. Custom solutions available for different environmental conditions.
Compliance Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, ensuring quality, safety, and reliability.
Customization & Options
We support customization and OEM services with design drawings. All units include standard DSE 6120 controller with optional engine, generator, and controller configurations.
Customizable Doosan Low Noise Silent Diesel Generator Set 360kW 450KVA Construction, Household Use, and Industrial Use 0
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for offices, shopping malls, and hotels maintaining lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. Free replacement of easy-damageable spare parts due to production or material quality issues. Professional after-sales support available 24/7.
Why Choose BOBIG Doosan Generators
  • Brand Reputation: Doosan is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
