Startseite /Produkte/SDEC-Dieselgenerator/3 Phase Genset 150kW SDEC Generators 150kW 188kva Diesel Genset for Sale Super Silent Diesel Generator Set

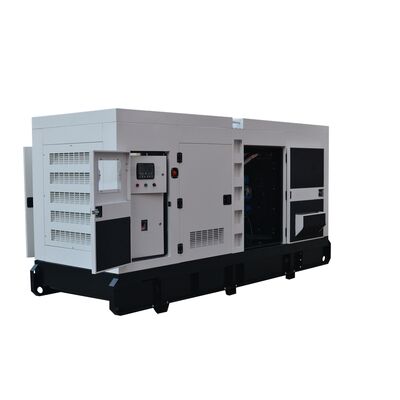

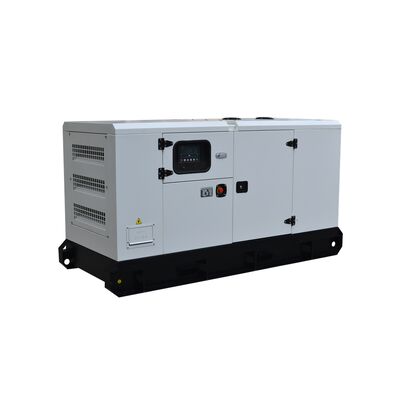

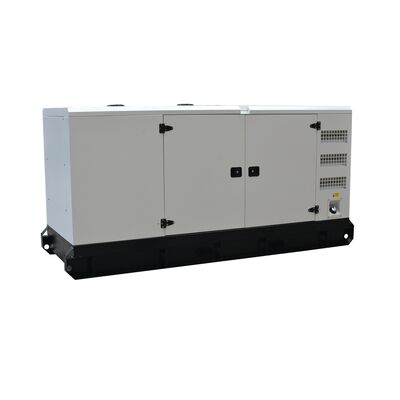

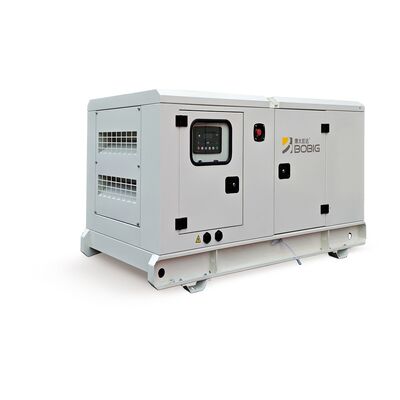

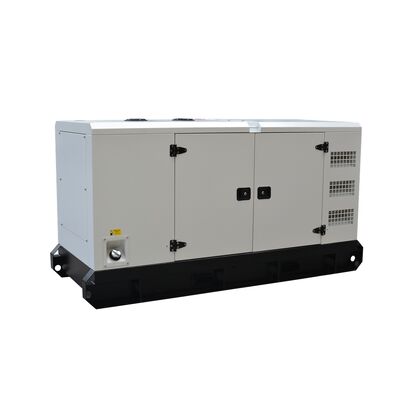

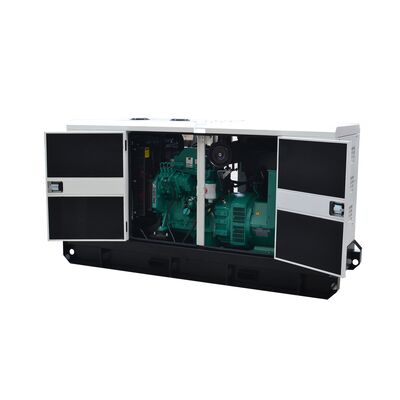

3 Phase Genset 150kW SDEC Generators 150kW 188kva Diesel Genset for Sale Super Silent Diesel Generator Set

3 Phase Genset 150kW SDEC Generators 150kW 188kva Diesel Genset for Sale Super Silent Diesel Generator Set
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Überdachung: Maßgeschneidert
Garantie: 12 Monate/1000 Stunden
Typ: Lautlos (super leise) oder offen, leise usw., Reihenmotor/6-Zylinder/4-Takt/4-Ventil/19L, schalldich
Bedienfeld: LCD-Digitalanzeige, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Ausgabetyp: Wechselstrom einphasig/dreiphasig
Regler: Deepsea/Smartgen/usw
Anwendung: Indursty Bank etc
Nennspannung: 400/230 V, 110–480 V, 220 V/380 V, 110 V/240 V, 380 V
Generator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford oder Newtec, Engga
Produktname: Dieselgenerator, Generator 188 kVA, angetrieben durch SDEC-Dieselgenerator, Standby-Betrieb, Dieselg
Farbe: Kundenanforderung
Frequenz: 50/60Hz
Nennleistung: 150 kW
Motor: Ursprüngliches SDEC
Kühlmethode: Wasserkühlsystem
Hervorheben:

150kW SDEC diesel generator

,

super silent 3 phase genset

,

188kva diesel generator set
Grundinformation
Herkunftsort: China
Markenname: SDEC
Zertifizierung: CE
Modellnummer: Schadstoffe und Stoffe, ausgenommen:
Zahlung und Versand AGB
Verpackung Informationen: Luftpolsterfolie
Lieferzeit: 30 Werktage
Versorgungsmaterial-Fähigkeit: 500 Stück pro Monat
Produkt-Beschreibung
150kW 188KVA BOBIG SDEC Diesel Generator (Model: SC7H250D2)
Our 150kW 188KVA BOBIG SDEC diesel generator (Model: SC7H250D2) is designed to provide reliable power for a wide range of applications. Backed by the SDEC brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 150kW (188KVA) for industrial, commercial, and residential applications
  • Stable prime power output ensures continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: SC7H250D2 SDEC engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Operating speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 188 206
Power Rating (kW) 150 165
Frequency (Hz) 50
Engine Model SC7H250D2
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications
Engine Model & Manufacturer SC7H250D2 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Dey cylinder liner
Number of Cylinders 6
Bore × Stroke 105 × 124 mm
Displacement 6.44 lit.
Compression Ratio 16 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle 12°BTDC
Dry Weight 600 kg
Dimension 1343x741x1267mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274G
Alternator Rated Power 150kw/188kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Dimensions and Weight
Model BSD206 (Open type) BSD206S (Silent type)
Length (L) mm 2370 3200
Width (W) mm 950 1200
Height (H) mm 1760 1660
Tank Capacity (L) 345 345
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Environmental Adaptability
Operates effectively in ambient temperature range of +5°C to +40°C and suitable for altitudes up to 1000m. Customized solutions available for different environmental conditions.
Compliance Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications guaranteeing quality, safety, and reliability.
Warranty and Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. Professional after-sales service team available 24/7 for technical support, maintenance, and repair services.
Packaging & Shipping
Plywood case packaging with delivery within 10-15 working days after receiving customer deposit.
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as customer request.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you offer parts when needed?
Yes, parts can be provided at any time, typically shipped within 3-5 days.
Can specifications be customized?
Yes, voltage, frequency, tank capacity, phase, and color can be customized to customer requirements.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
