SDEC 6ETAA12.8-G22 300kW Industrial Diesel Generator, High Efficiency & Low Noise

1
MOQ
USD 300-860
Preis
SDEC 6ETAA12.8-G22 300kW Industrial Diesel Generator, High Efficiency & Low Noise
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Hervorheben:

300kW industrial diesel generator

,

SDEC low noise diesel generator

,

high efficiency diesel generator with warranty
Grundinformation
Herkunftsort: China
Markenname: SDEC
Modellnummer: 6ETAA12.8-G22
Zahlung und Versand AGB
Verpackung Informationen: 420*140*212cm
Lieferzeit: 30 ARBEITSTAGE
Zahlungsbedingungen: L/C, T/T, D/P
Versorgungsmaterial-Fähigkeit: 500 Prozent pro Monat
Produkt-Beschreibung

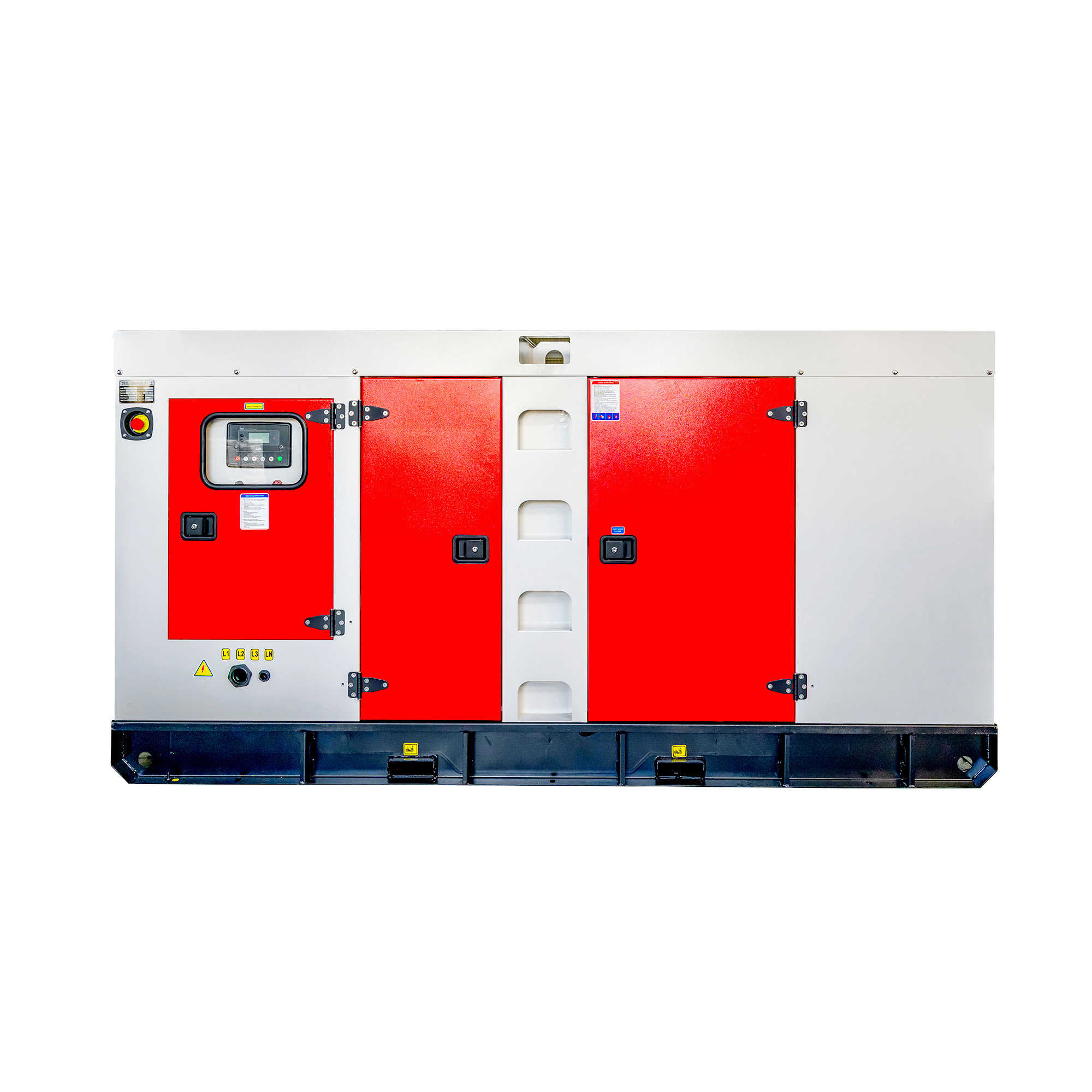

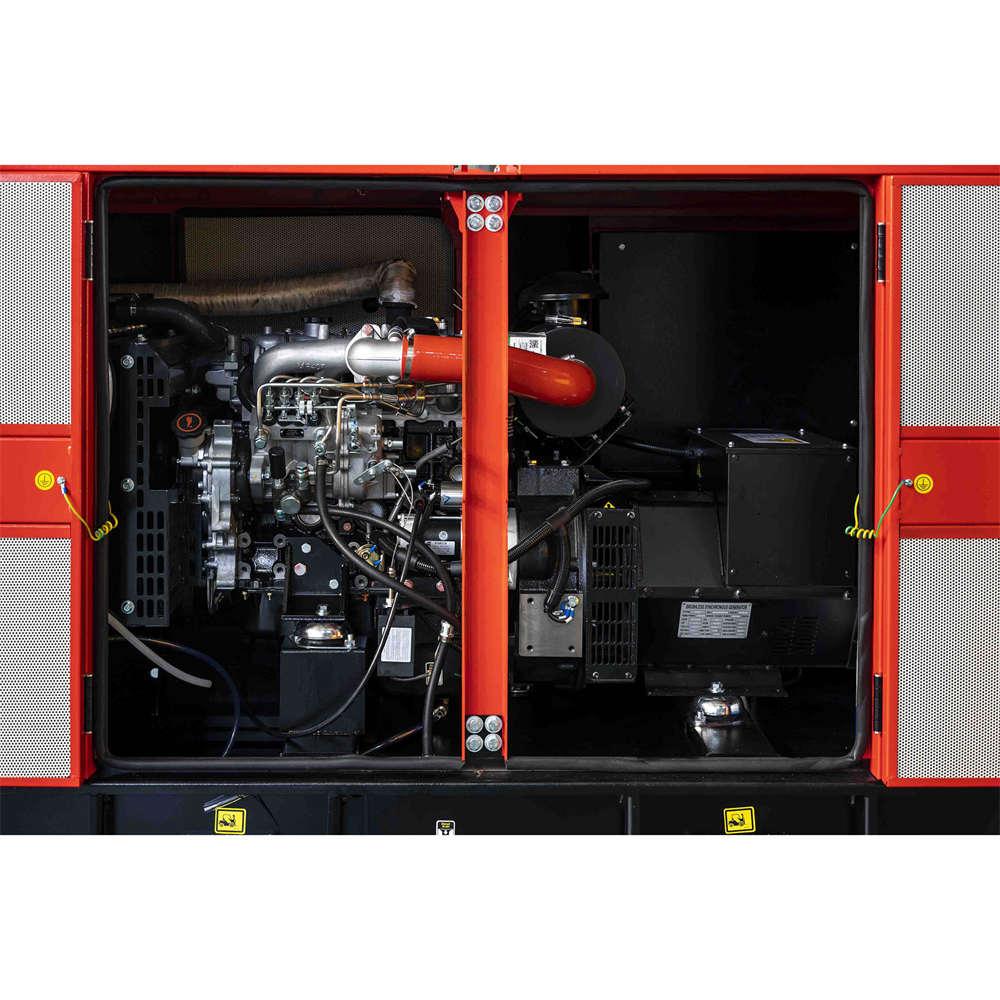

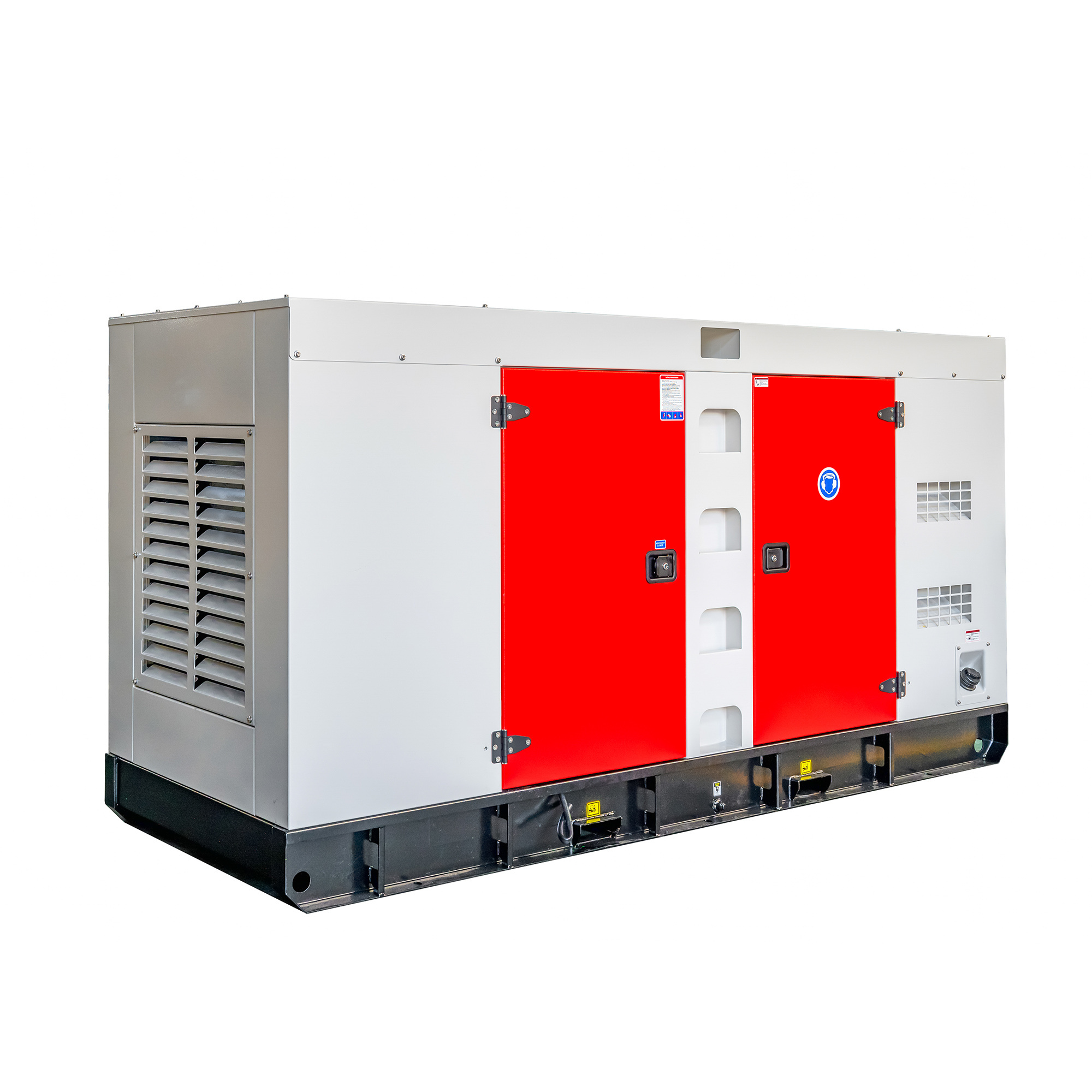

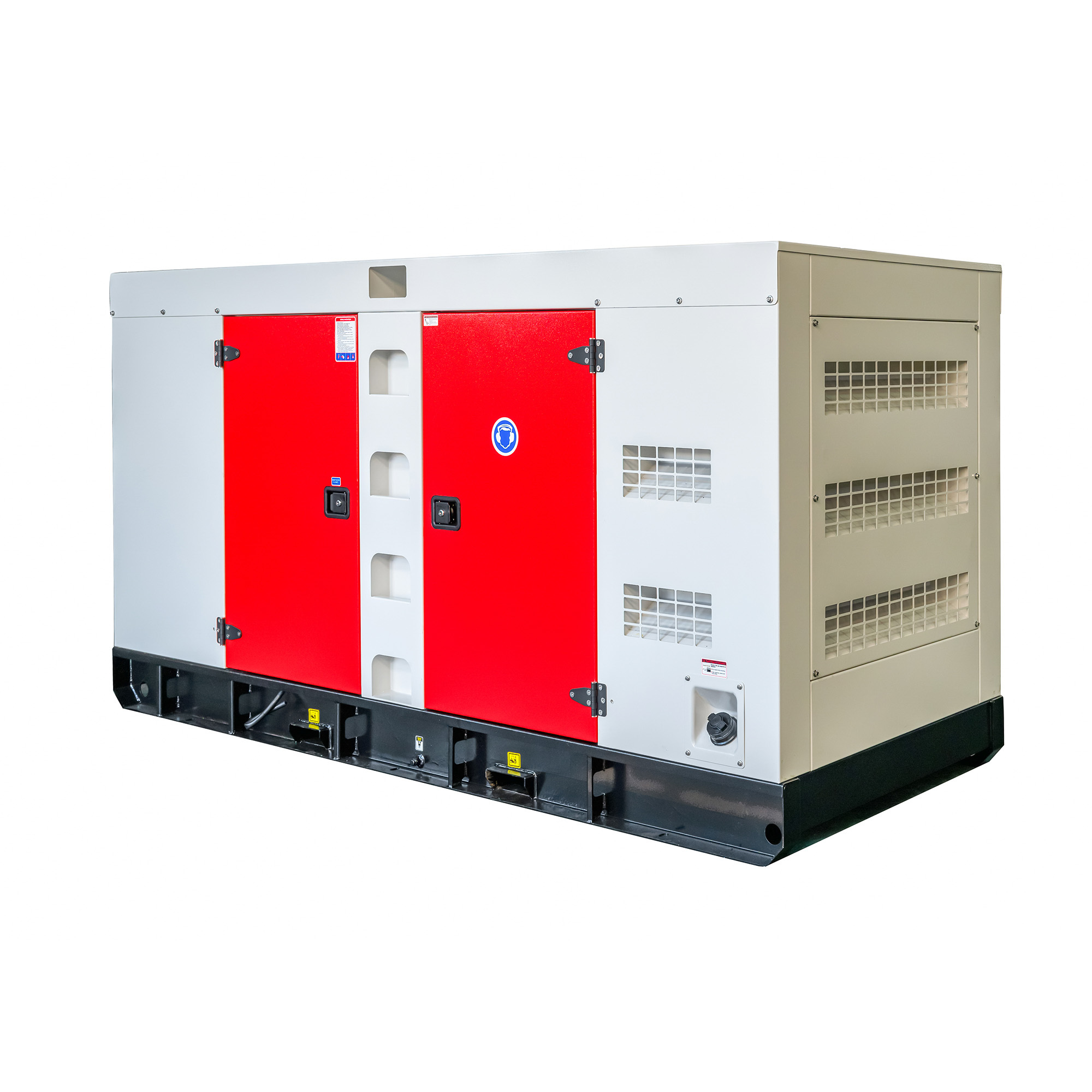

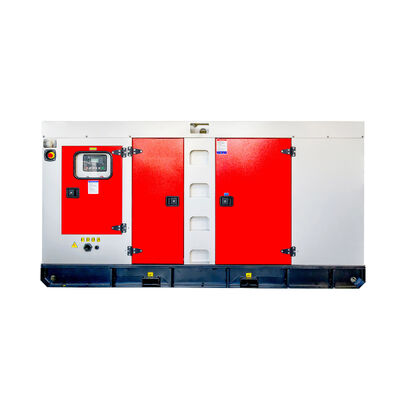

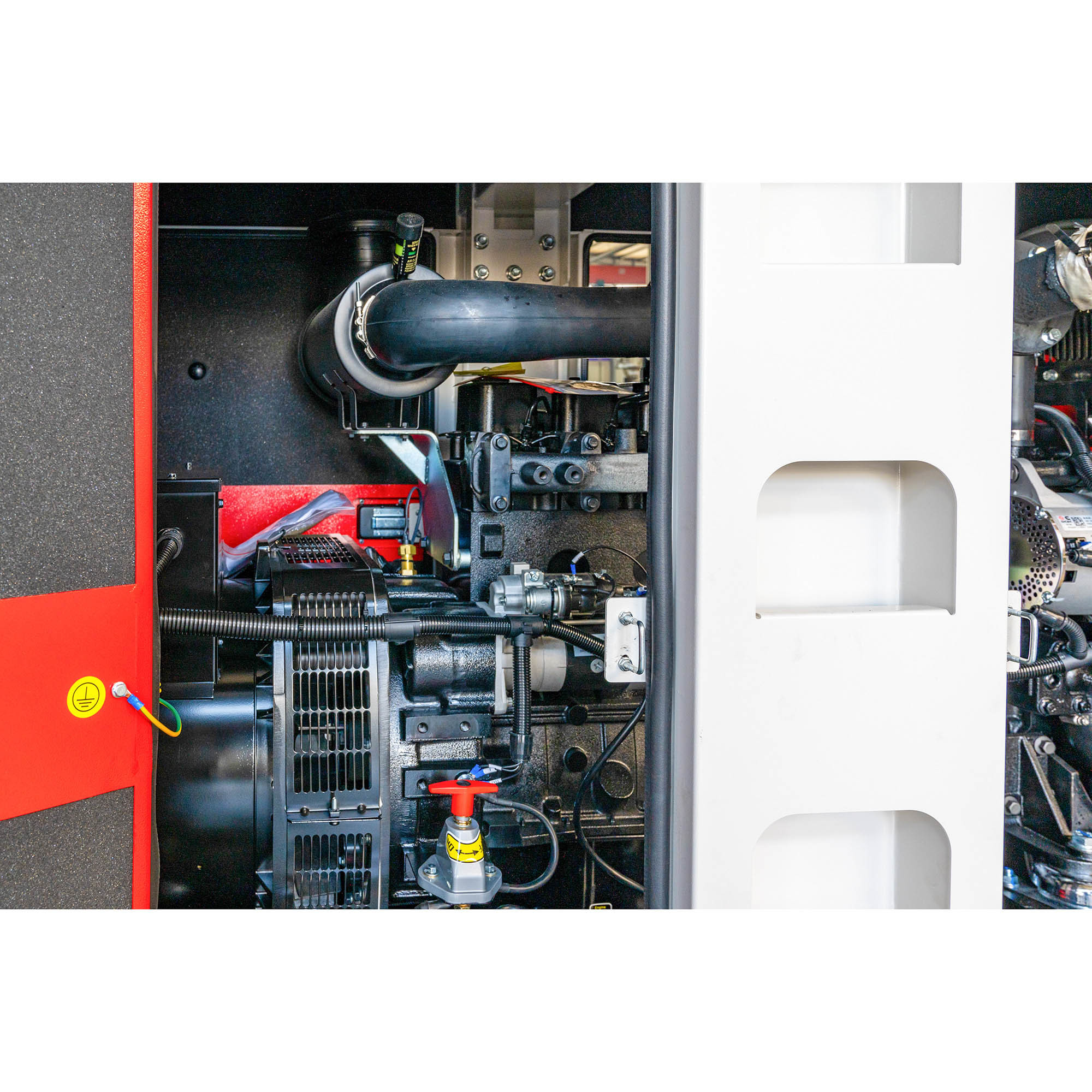

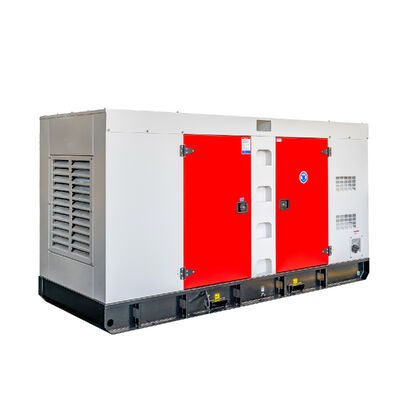

SDEC 6ETAA12.8-G22 300kW Industrial Diesel Generator
Product Overview

Our SDEC 6ETAA12.8-G22 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 300kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

SDEC 6ETAA12.8-G22 300kW Industrial Diesel Generator, High Efficiency & Low Noise 0 SDEC 6ETAA12.8-G22 300kW Industrial Diesel Generator, High Efficiency & Low Noise 1
Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 375 413
Power Rating (kW) 300 330
Frequency (Hz) 50
Engine Model 6ETAA12.8-G22
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BSD413 BSD413S
Type Open type Silent type
Length (L) mm 3100 4200
Width (W) mm 1050 1400
Height (H) mm 2100 2120
Tank Capacity (L) 690 690
Engine Specifications
Parameter Specification
Engine Model & Manufacturer 6ETAA12.8-G22 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 130 × 161 mm
Displacement 12.8 lit.
Compression Ratio 17 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle 14°BTDC
Dry Weight 1164 kg
Dimension 1856×1000×1354mm
Rotation CCW viewed from flywheel
Fly Wheel Housing SAE 1#
Fly Wheel SAE 14# (number of teeth: 133)
Injection Pump Longkou in-line "PZ" type
Governor Electric type
Feed Pump Mechanical type
Injection Nozzle Multi hole type
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314F
Alternator Rated Power 300kW/375kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
SDEC 6ETAA12.8-G22 300kW Industrial Diesel Generator, High Efficiency & Low Noise 2
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12 / 24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
SDEC 6ETAA12.8-G22 300kW Industrial Diesel Generator, High Efficiency & Low Noise 3 SDEC 6ETAA12.8-G22 300kW Industrial Diesel Generator, High Efficiency & Low Noise 4
